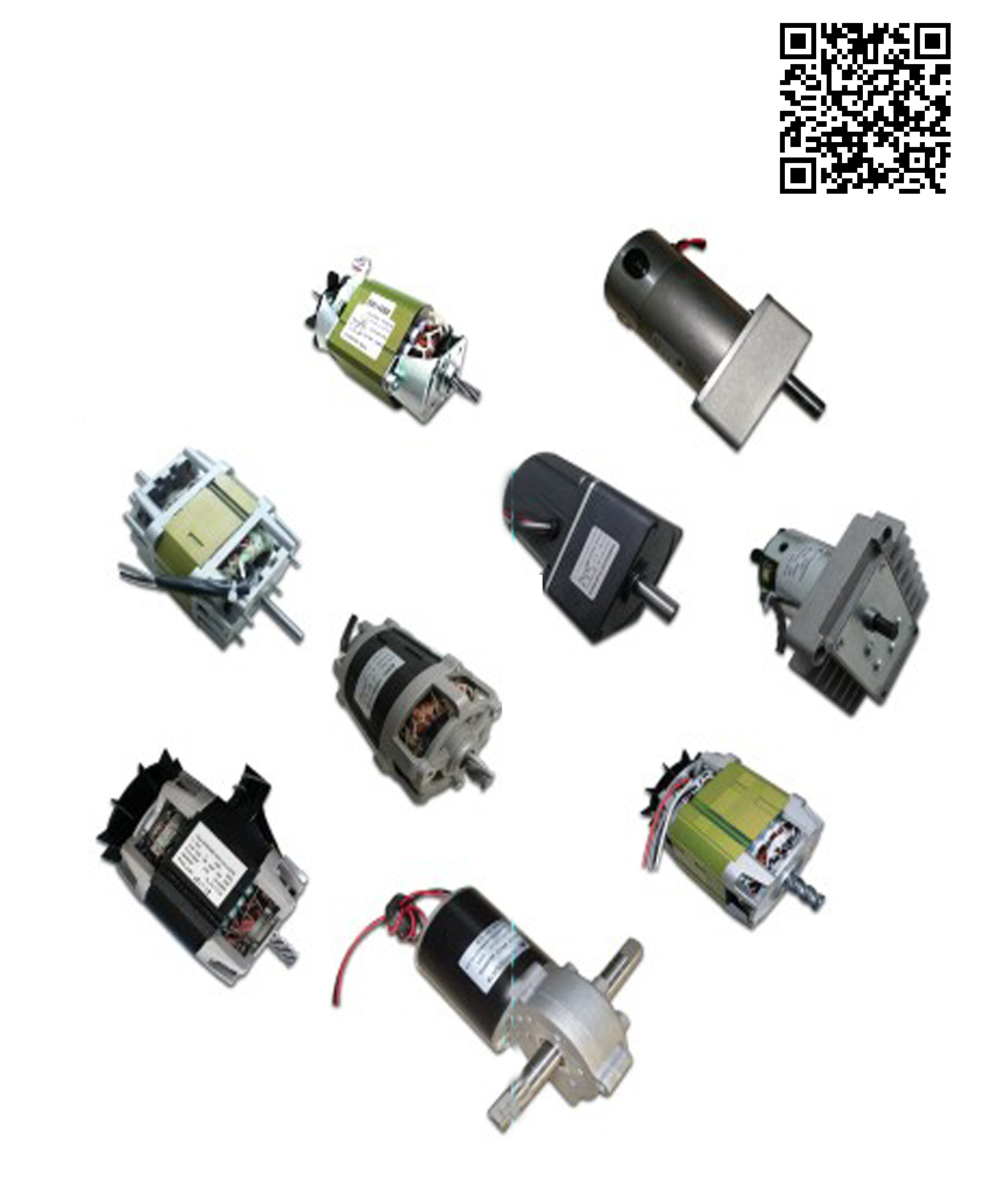

Gear Motors
Gear motors are engineered for applications requiring precise speed control and high torque output. These motors provide reliable and efficient power transmission, ensuring optimal performance and durability.
Technical Specifications
Overview
High-Performance Gear Motor Solutions
These versatile gear motors are engineered for applications requiring precise speed control and high torque output. Designed for reliability and efficiency, they feature automatic thermal overload protection, quiet operation, and all-angle mounting capabilities. Ideal for industrial machinery, heating systems, and automated equipment, these motors offer flexible configurations to suit diverse operational needs.
Technical Specifications
- Voltage Range
- 100-240V
- Frequency
- 50/60Hz
- Insulation Class
- Class B
- Mounting Style
- All-angle mounting
- Protection Features
- Automatic thermal overload protectionQuiet operationHigh efficiency
Performance Data
Performance Specifications
| Model | Power (W) | Speed (r/min) | Torque (N.m) |
|---|---|---|---|
| YY5530-2P | 35 | 2,750 | 0.12 |
| YY5535-2P | 45 | 2,750 | 0.16 |
| YY5540-2P | 55 | 2,750 | 0.19 |
| YY5545-2P | 60 | 2,750 | 0.21 |
| YY5550-2P | 70 | 2,750 | 0.24 |
| YY6625-4P | 20 | 1,400 | 0.14 |
| YY6635-4P | 25 | 1,400 | 0.17 |
Applications
Common Applications
- Centrifugal and Boiler Blowers
- Pellet Stove Fans
- Water Heater Systems
- Washing and Drying Machines
- Paper Shredders
- Kneading Machines
- Industrial Automation
- Robotics
