Gear Head Metalworking Lathe

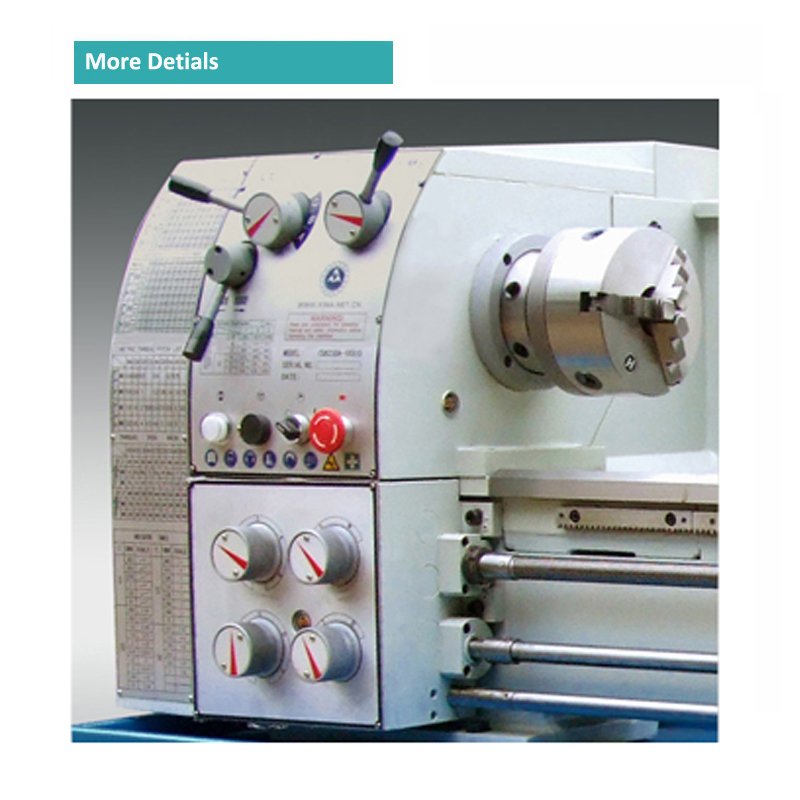

This precision gear head lathe is designed for metal cutting operations. It features a robust construction with multiple controls including levers, knobs, and push buttons for precise adjustments.
Technical Specifications
Overview
Precision Gear Head Lathe
The PL300Q is a high-performance precision gear head lathe engineered for versatile metalworking operations. It features a hardened and precision-ground 'V' guideway system that ensures exceptionally smooth and accurate movement during machining. With a robust four-axis gearbox and a D1-4 camlock spindle, this machine provides the stability and control required for professional turning, threading, and taper-cutting tasks.
Technical Specifications
Spindle Speed Range
50 rpm
Minimum Speed
1,500 rpm
Maximum Speed
- Spindle Type
- D1-4 Camlock
- Gearbox Type
- Four-axis gearbox
Features
Key Functional Features
- Hardened and precision ground 'V' guideway
- Offset tailstock for taper turning
- 9-step spindle speed control
- Integrated control panel with safety warnings
- Multi-control interface with levers and push buttons
- Operational Tags
- Precision GroundTaper CapableMetalworking
