Gear Head Metal Lathe
This gear head lathe is a versatile machine tool for metal cutting and turning. It features a geared headstock for variable speed control, a chuck for holding workpieces, and a carriage and tailstock for supporting the cutting tool.
Technical Specifications
Product Overview

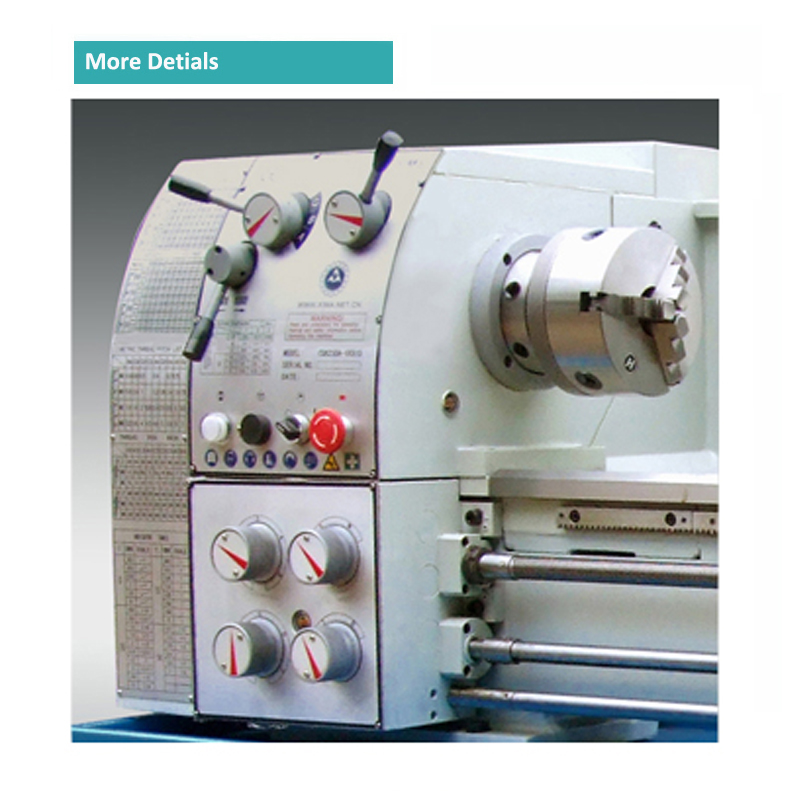

Precision Gear Head Lathe
The PL300Q is a robust machine tool engineered for high-performance metal cutting and turning operations. Featuring a hardened and precision-ground V-guideway, it ensures exceptional accuracy and smooth carriage movement for demanding engineering tasks. Its versatile configuration, including a four-axis gearbox and taper-turning tailstock, makes it an ideal solution for a wide range of precision manufacturing requirements.
Technical Specifications
Spindle Speed Range
50 rpm
Min Speed
1,500 rpm
Max Speed
- Spindle Configuration
- D1-4 camlock spindle with 9 speed steps
Key Features
Product Highlights
- Hardened and precision-ground V-guideway
- Four-axis gearbox for large feed and threading
- Offset tailstock for taper turning operations
- Geared headstock for variable speed control
Certification and Safety
- Safety Compliance
- Safety Manual RequiredIndustrial Grade
