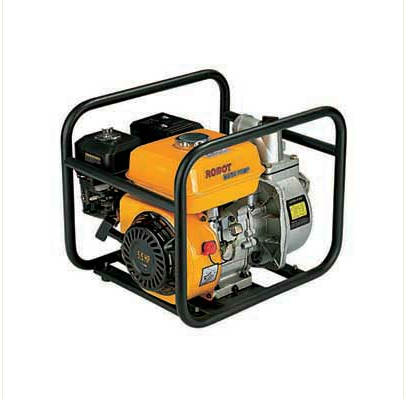

Gasoline Powered Water Transfer Pump
This gasoline water transfer pump provides a robust solution for high-volume water displacement. With a 5.5 HP engine, the pump is suitable for irrigation, construction, and emergency response applications.
Technical Specifications
Product Overview
High-Performance Water Transfer
The WP50A is a robust, self-suction vacuum pump engineered for demanding water transfer tasks including irrigation, construction, and emergency response. Powered by a reliable 5.5HP air-cooled engine, it delivers high-volume displacement and consistent performance in challenging environments. Designed for professional utility, this unit balances portable stability with efficient mechanical power for dependable operation.
Performance Metrics
Operational Performance
33 m³/h
Max Flow Rate
26 m
Max Lift Head
8 m
Max Suction Head
Technical Specifications
Engine Specifications
- Model: WA168F
- Type: 4-Stroke, Single Cylinder, Air-cooled
- Displacement: 163ml
- Max Power: 4.0KVA at 3600rpm
- Bore x Stroke: 68mm x 45mm
Mechanical Configuration
| Feature | Specification |
|---|---|
| Outlet Diameter | 50mm (2.0") |
| Start Mode | Recoil and hand-operated |
| Fuel Tank Capacity | 3.6L |
| Working Time | 2-3 Hours |
| Oil Alert | Included |
Logistics
Weight and Shipping
| Item | Data |
|---|---|
| Net Weight | 24kg |
| Gross Weight | 26kg |
| Packing Dimensions | 495x393x390mm |
| 20' GP Capacity | 384 sets |
| 40' GP Capacity | 828 sets |
