Technical Specifications
Overview

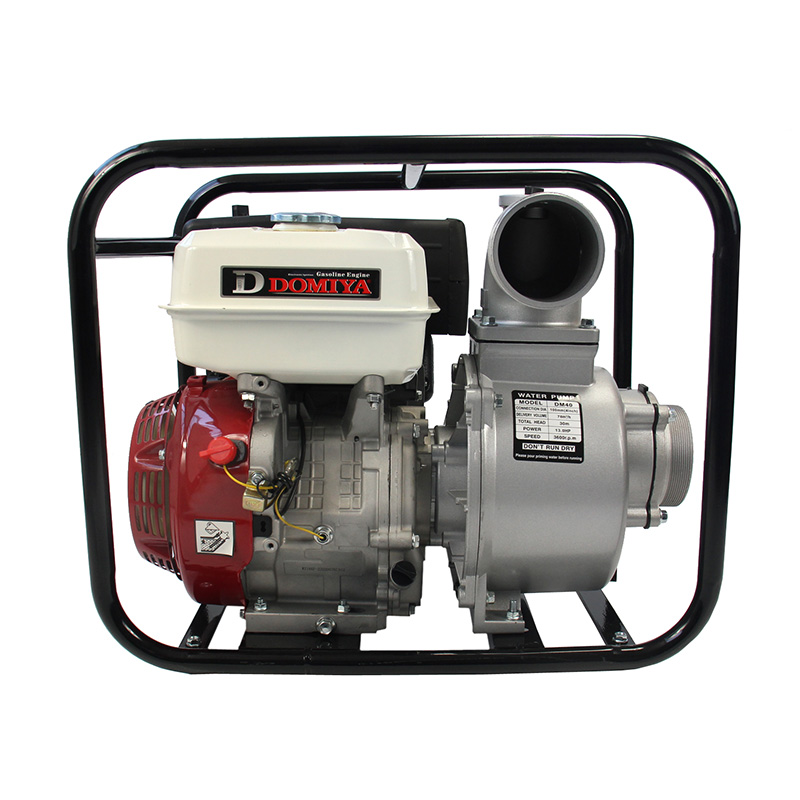

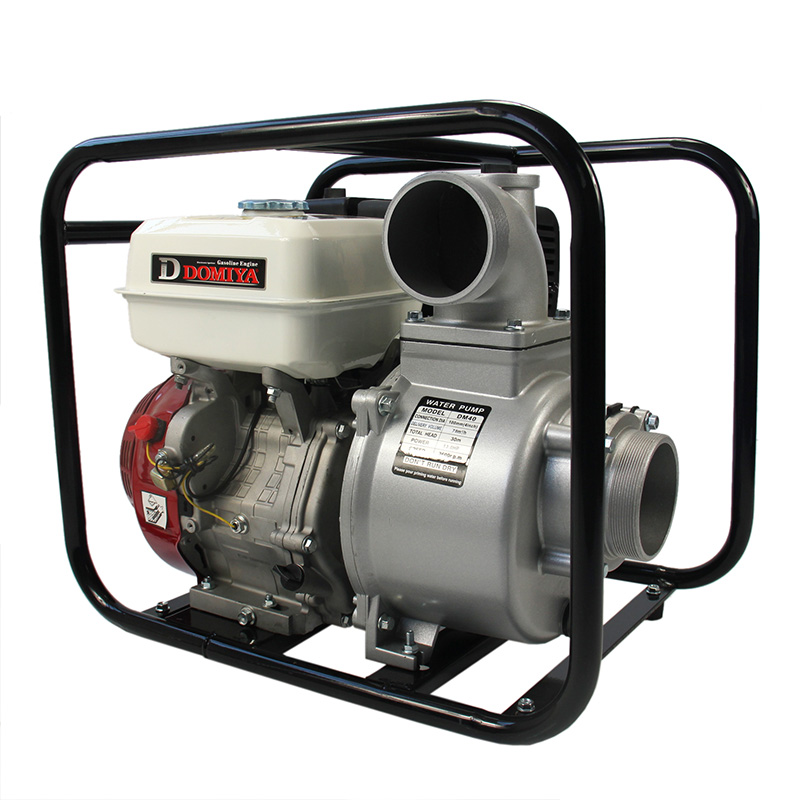

High-Performance Gasoline Water Pump
This gasoline-powered water transfer pump is engineered for superior durability and high-efficiency performance in agricultural irrigation and municipal sewage projects. Featuring a reliable four-stroke OHV engine and reinforced air-cooling, it delivers consistent power for demanding water management tasks. The unit is designed with ease of use in mind, offering both manual recoil start and optional key-start capabilities for flexible operation in various environments.
Performance Metrics
Key Performance Metrics
78 m3/h
Max Flow Rate
16 m
General Lift
8 m
Suction Lift
Engine Specifications
- Engine Model
- GX390
- Engine Type
- One-Cylinder Reinforced Air-Cooling Four-Stroke OHV
- Displacement
- 389 cm3
- Max Output Power
- 13 HP
- Rotation Speed
- 3600 RPM
Technical Details
- Outlet/Intake Diameter
- 100mm (4 inch)
- Gasoline Tank Capacity
- 3.6 L
- Machine Oil Capacity
- 0.6 L
Features
- Key Features
- Recoil StartLow Noise MufflerCast Iron Cam ShaftHigh Quality CarburetorKey Start Optional
Logistics
Dimensions & Weight
| Metric | Value |
|---|---|
| Packing Dimension | 65.5 x 45.5 x 58 cm |
| Gross Weight | 47 kg |
| Net Weight | 45 kg |
