Gasoline Powered Rock Drill Breaker
This gasoline powered rock drill breaker is a self-propelled tool for drilling, splitting, breaking, ramming and shovelling. It is widely used in mining, road construction, quarrying and national defense construction.
Technical Specifications
Product Overview
Versatile Internal Combustion Rock Drill

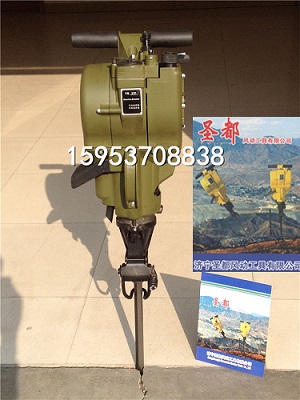

The YN27P is a highly portable, gasoline-powered rock drill breaker designed for professionals in mining, road construction, and quarrying. It features a self-contained internal combustion engine, eliminating the need for external air compressors or electrical power sources. Engineered for efficiency, this tool excels in drilling, splitting, breaking, ramming, and shovelling, offering unmatched versatility in remote environments.
Key Performance Metrics
Operational Performance
2,450 r/min
Engine Speed
185 cm3
Piston Displacement
1.14 L
Tank Capacity
Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Main machine weight | 25 kg |
| Overall dimensions | 730 × 315 × 229 mm |
| Drill rod end size | 22 × 108 mm (Hexagonal) |
Engine Configuration
- Single cylinder, air-cooled two-stroke
- Cylinder diameter: 58 mm
- Piston stroke: 70 mm
- Controllable silicon contactless ignition system
- Hand needle valve, no-float carburetor
- 12:1 Gasoline-to-oil mixing ratio
Applications
- Suitable Industries
- MiningRoad ConstructionQuarryingNational Defense Construction
Maintenance
- Spark Plug Clearance
- 1.5 mm
