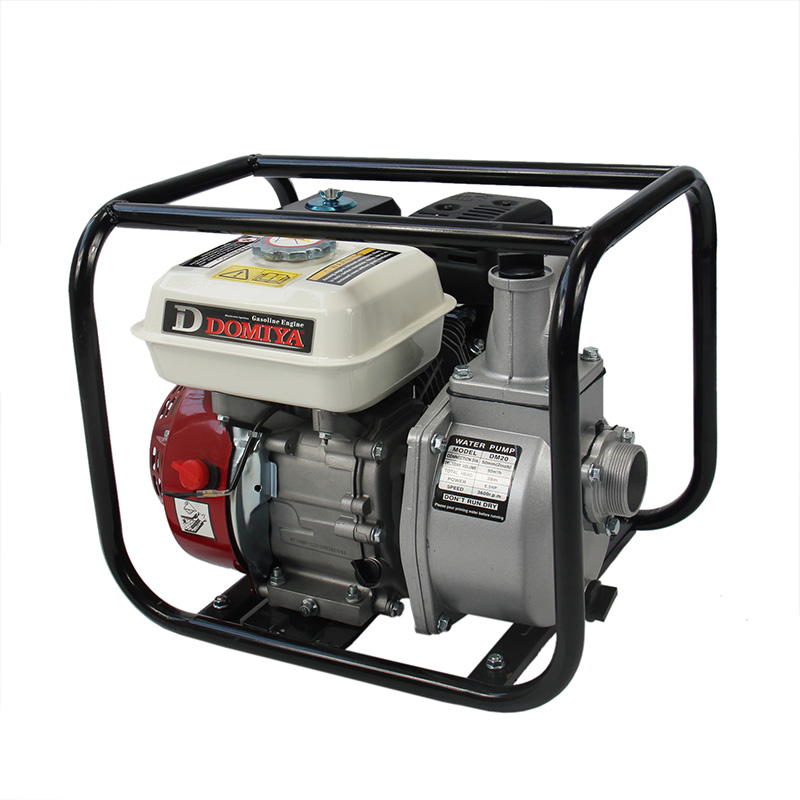

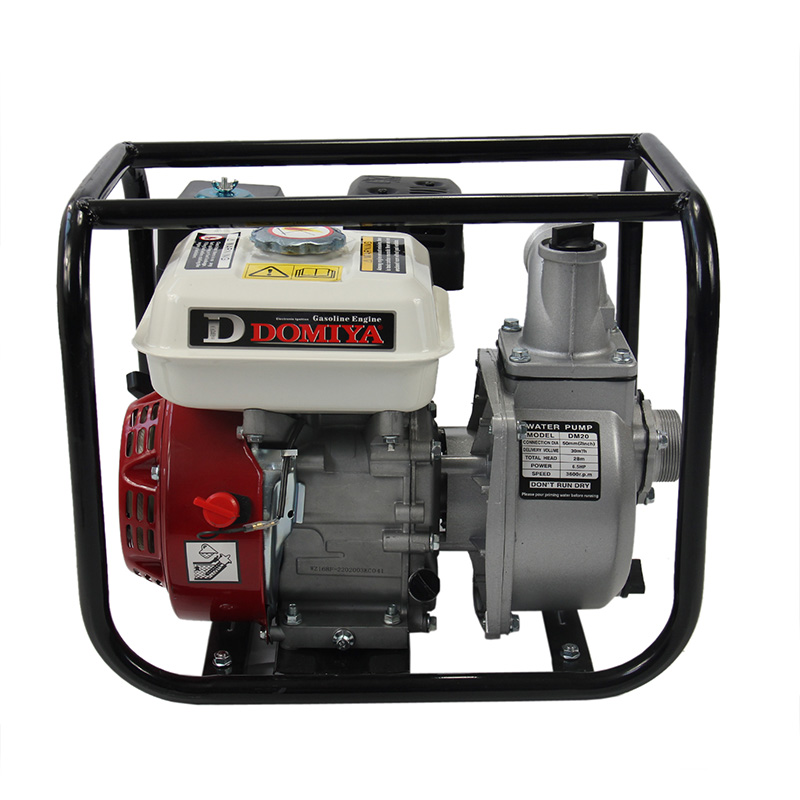

Gasoline Engine Water Pump
This self-priming centrifugal water pump is powered by a gasoline engine. It is designed for irrigation, dewatering, and general water transfer.
Technical Specifications
Overview
High-Performance Gasoline Water Pump
This self-priming centrifugal gasoline water pump is engineered for superior durability and high-performance operation. Designed for demanding applications such as agricultural irrigation and municipal sewage projects, it features a reliable four-stroke OHV engine. With a robust protective frame and efficient design, it offers a consistent flow rate for professional water transfer needs.
Performance Metrics
Key Performance Indicators
30 m3/h
Max Flow Rate
28 m
Total Lift
8 m
Suction Lift
3,600 RPM
Rotation Speed
Engine Specifications
Engine Technical Data
| Parameter | Value |
|---|---|
| Model | GX200 |
| Displacement | 163 cm3 |
| Max Output | 6.5 HP |
| Type | One-Cylinder, Air-Cooling, Four-Stroke OHV |
Technical Specifications
Physical Dimensions & Capacities
- Inlet/Outlet Diameter: 50mm (2 inch)
- Gasoline Tank Capacity: 3.6 L
- Machine Oil Capacity: 0.6 L
- Gross/Net Weight: 27/25 kg
- Packing Dimensions: 49 x 38.5 x 46 cm
Features
- Key Features
- Recoil StartLow Noise MufflerSelf-PrimingHigh-Quality CarburetorCast Iron Cam Shaft Option
Logistics
- Shipping Information
- 350 Sets per 20' FCL
