Technical Specifications
Product Overview

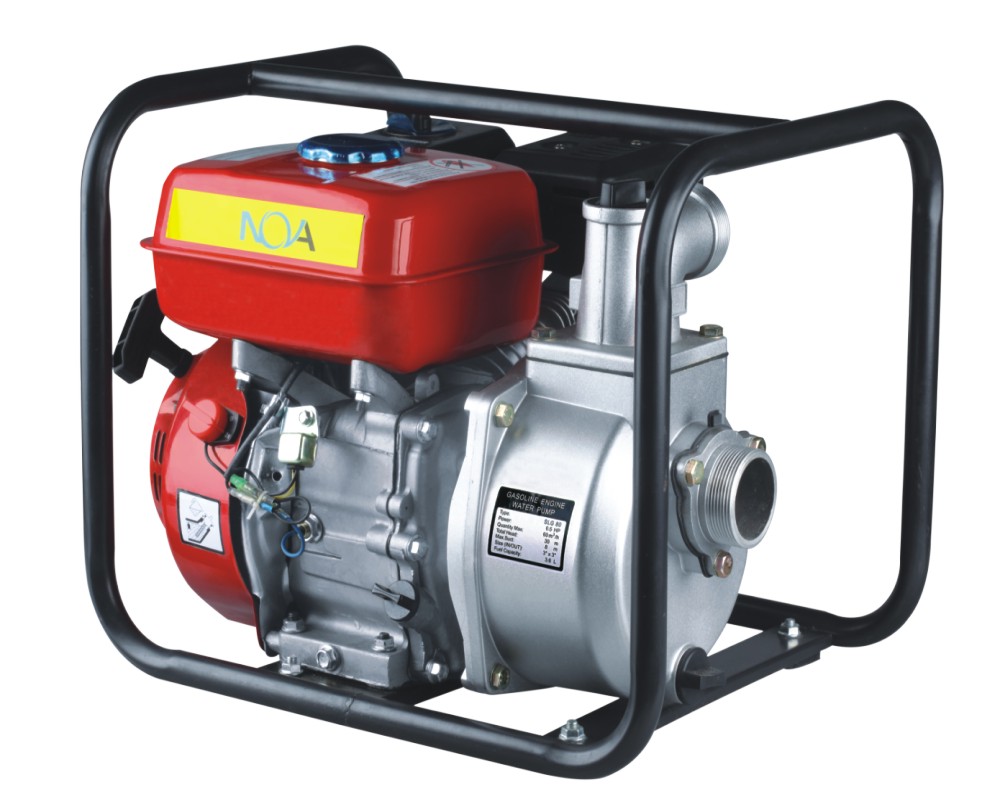

Industrial Gasoline Engine Water Pump
This series of high-performance water pumps is designed for versatile industrial and agricultural applications. Powered by reliable gasoline engines, these units feature a robust air-cooled, open-frame construction with durable aluminum alloy pump bodies and impellers. They are engineered to provide efficient water transfer for tasks such as irrigation and dewatering, ensuring stability and long-term operational reliability.
Construction & Design
Electrical Standards
Insulation Class B/FProtection Class IP44/IP54
- Construction Materials
- Aluminum Alloy BodyAluminum Alloy ImpellerOpen Frame Design
Performance Metrics
Performance Highlights (GLD-80 Model)
6.5 HP
Power Output
36 m3/h
Max Capacity
30 M
Total Head
7 M
Suction Head
- Fuel Specifications
- Gasoline, 3.6 L Capacity
Technical Data
Technical Specifications by Model
| Model | Pipe Dia (mm) | Max Head (m) | Max Flow (L/min) | Power (Hp) | Weight (Kg) |
|---|---|---|---|---|---|
| SLG50 | 50x50 | 28 | 600 | 5.5 | 24 |
| SLG80 | 80x80 | 27 | 1,000 | 6.5 | 27 |
| SLG100 | 100x100 | 27 | 1,600 | 8 | 44 |
