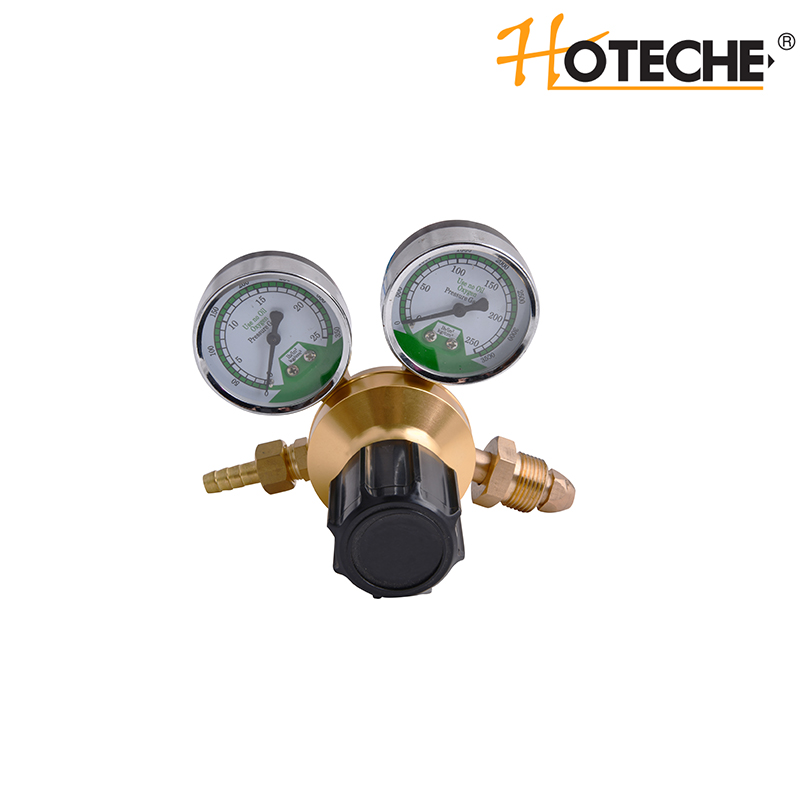

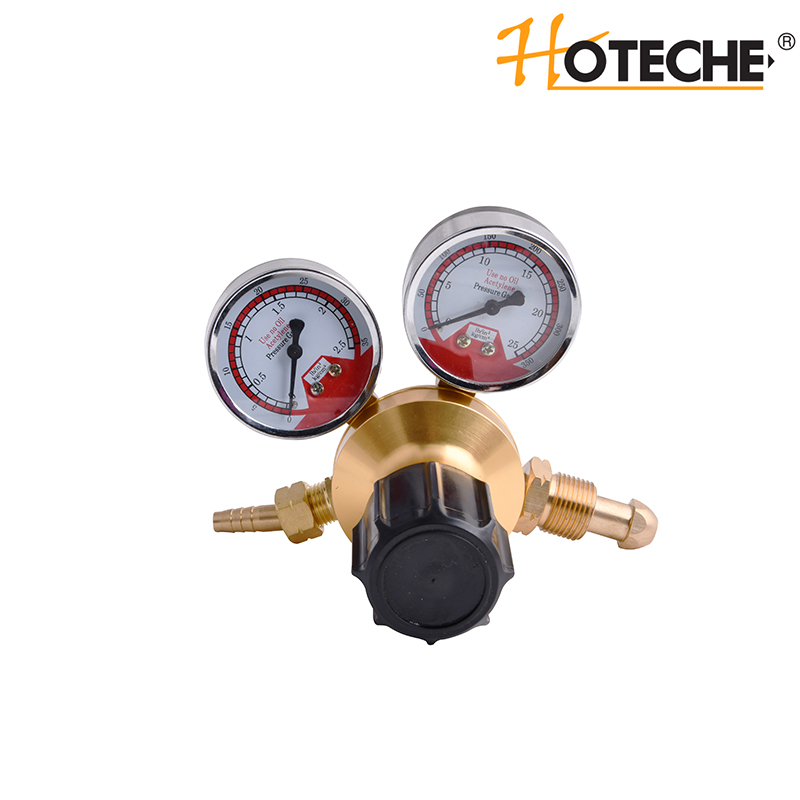

Gas Pressure Regulator with Dual Gauges
This gas pressure regulator is designed for precise control and monitoring of gas flow. It features dual gauges for displaying cylinder pressure and outlet pressure, ensuring safe and efficient operation.
Technical Specifications
Product Overview
Industrial Gas Pressure Regulation
This dual-gauge gas pressure regulator series provides precise flow control for oxygen, acetylene, and propane gases. Constructed for durability and performance in welding and cutting applications, these units feature integrated gauges to monitor both cylinder and outlet pressure levels. The robust design ensures safe, consistent gas delivery for industrial environments.
Performance Specifications
Pressure Ratings
| Gas Type | Inlet Pressure (bar) | Outlet Pressure (bar) |
|---|---|---|
| Oxygen | 150 | 12.5 |
| Acetylene | 20 | 1.5 |
| Propane | 16 | 2 |
Connection Details
Inlet & Outlet Connections
- Oxygen: Inlet CGA540, Outlet 9/16"-18RH
- Acetylene: Inlet CGA300, Outlet 9/16"-LH
- Propane: Inlet CGA300, Outlet 9/16"-LH
