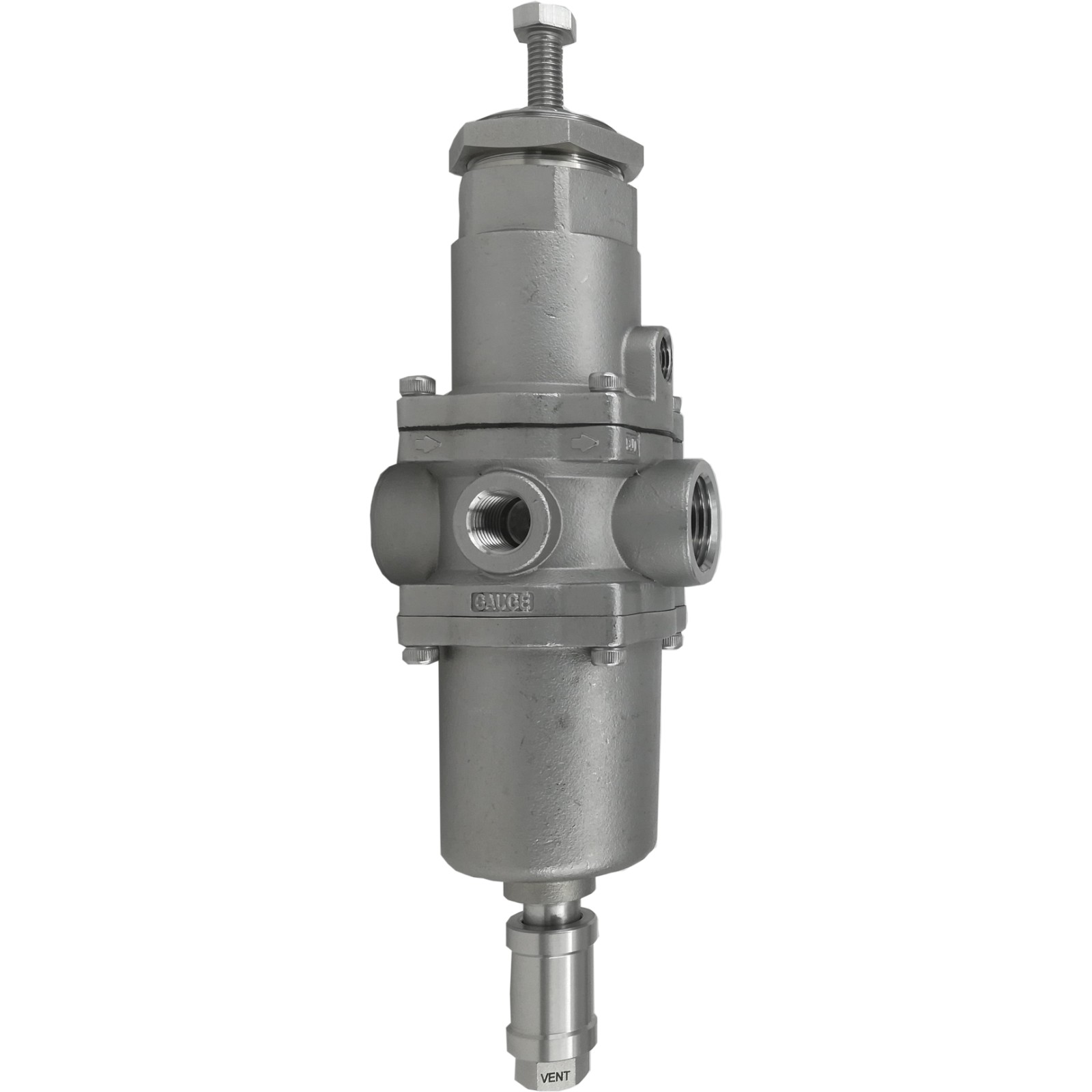

Gas Pressure Reducing Regulator
These gas reducing regulators maintain accurate downstream pressure, adjustable via a set handle. A relief port prevents excessive downstream pressure build-up.
Technical Specifications
Product Overview
Gas Pressure Reducing Regulator
The FR and AR series gas reducing regulators are engineered for precise downstream pressure control in demanding industrial environments. Featuring robust 316 stainless steel construction, these valves are designed to withstand harsh conditions, including sour gas and off-shore applications. Each unit includes an integrated relief port to prevent excessive pressure buildup, ensuring safety and operational reliability.
Technical Specifications
- Wetted Materials
- 316 Stainless SteelX-750
- Seal Material
- Buna N (Standard)
- Operating Temperature Range
- -40°F to 250°F (-40°C to 120°C)
- Element Pore Size
- 25 um
- Suitable Media
- Natural GasN2Air
Performance Metrics
Pressure Ratings
300 psig
Max Inlet Pressure
150 psig
Max Outlet Pressure
NACE MR-0175 Compliance
AvailableOptional

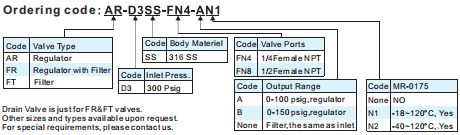

Configuration Options
Valve Configuration Types
- AR: Regulator
- FR: Regulator with Filter
- FT: Filter
Available Port Sizes
- 1/4 Female NPT (FN4)
- 1/2 Female NPT (FN8)
