Gap Bed Lathe

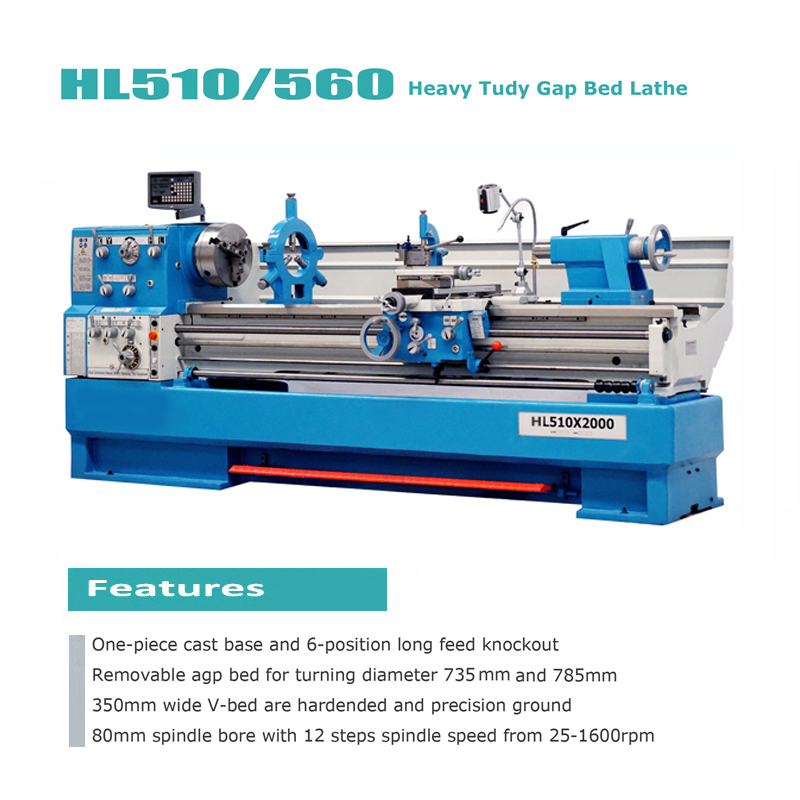

This heavy-duty gap bed lathe features a one-piece cast base and a 6-position long feed knockout. It has a removable gap bed for turning diameters of 735mm and 785mm.
Technical Specifications
Overview
Heavy-Duty Precision Engineering
This heavy-duty gap bed lathe is a versatile machine tool engineered for high-precision metal cutting and turning operations. Built with a robust one-piece cast base and a precision-ground 350mm wide V-bed, it provides the stability required for demanding industrial tasks. The removable gap bed design significantly expands operational capacity, allowing for the machining of larger diameter workpieces with ease.
Technical Specifications
- Spindle Bore
- 80 mm
- Spindle Speed Range
- 25-1600 rpm
- Spindle Speed Steps
- 12
- V-Bed Width
- 350 mm
Capacity
Turning Diameters
735 mm
Gap Diameter 1
785 mm
Gap Diameter 2
Features
Machine Highlights
- One-piece cast base construction
- 6-position long feed knockout
- Removable gap bed for large diameters
- Hardened and precision ground V-bed
- Control Interface
- Multi-position selectorEmergency stopManual leversPrecision dials
