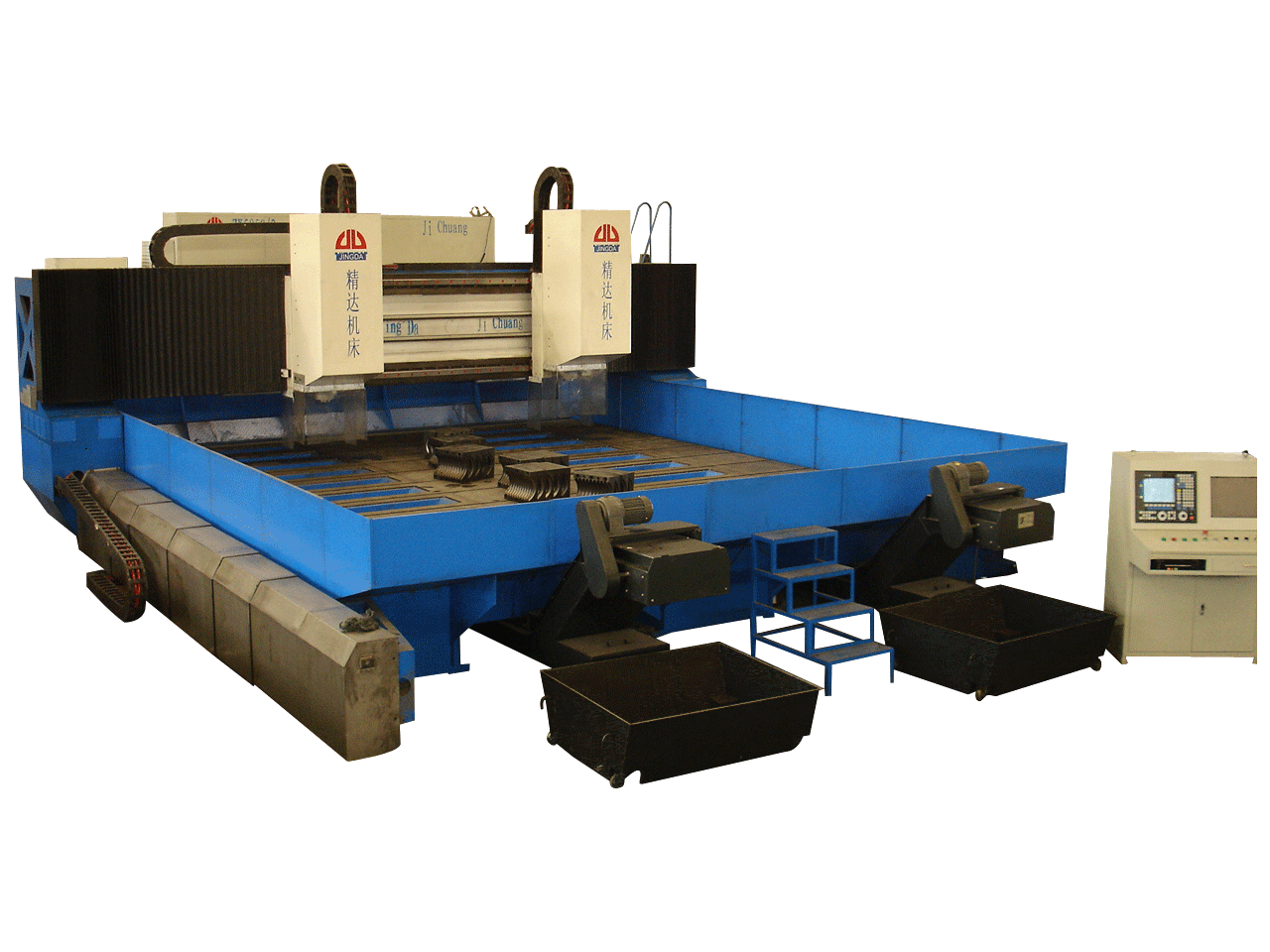

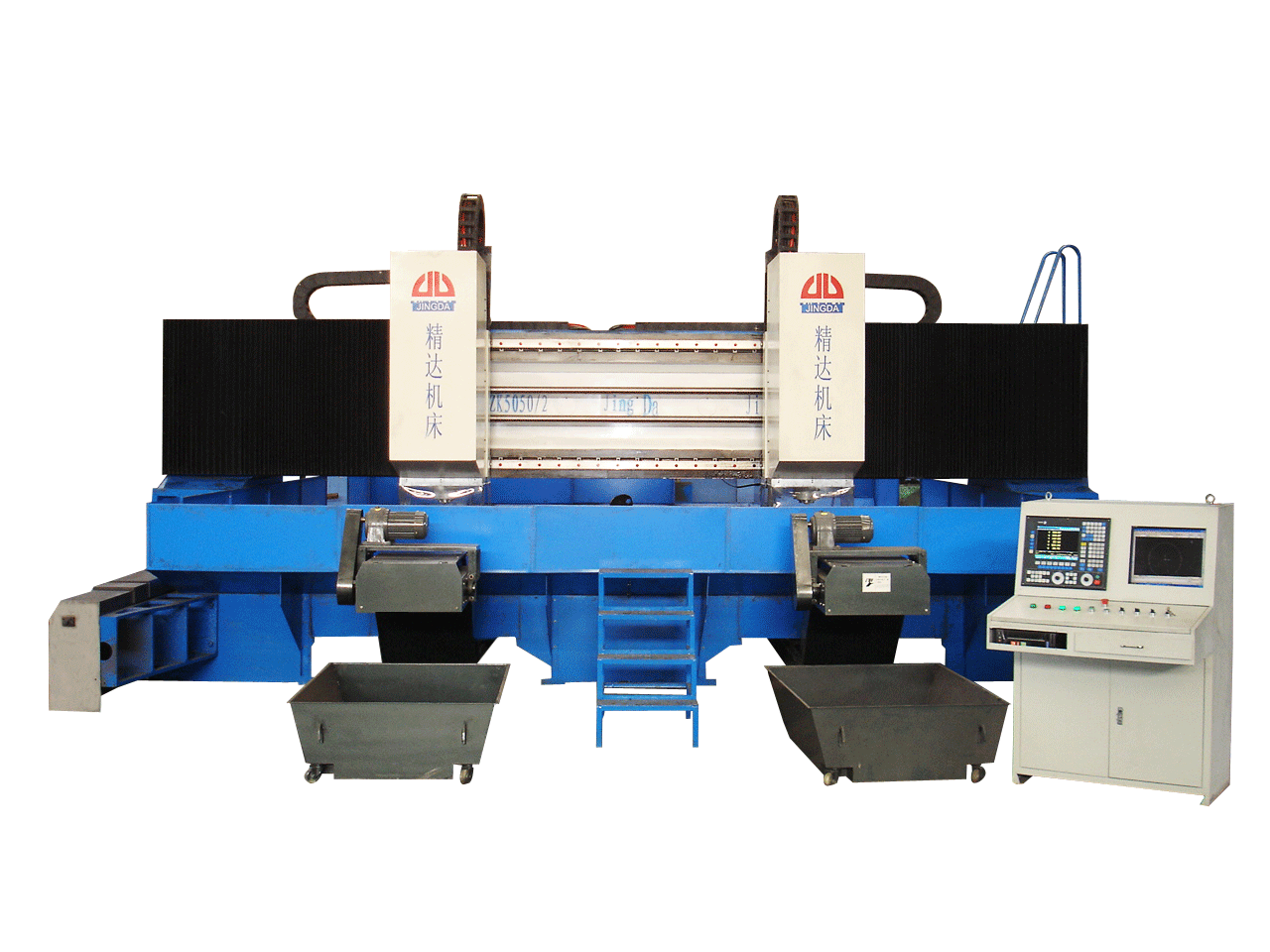

Gantry CNC Drilling and Milling Machine
The gantry-type CNC drilling and milling machine is widely used for the drilling and milling of tube or plate type parts. It features a robust frame for stability and reduced vibration during high-speed machining.
Technical Specifications
Overview
High-Precision Gantry Machining
This gantry-type CNC drilling and milling machine is engineered for heavy-duty industrial operations, providing exceptional stability and accuracy. Featuring a robust dual-column structure and a moving gantry design, it ensures efficient material handling and consistent performance during high-speed machining. It is an ideal solution for complex manufacturing tasks in sectors such as aerospace, automotive, and mold making.
Technical Specifications
Primary Applications
- Tube machining
- Plate machining
- Mold making
- Aerospace component manufacturing
- Automotive component manufacturing
- Available Models
- ZK5050/2GM40-20
Key Features
Design & Construction
Gantry-type structureDual-column designMoving gantryRobust frame
Integrated Systems
- Advanced CNC control system
- Coolant system
- Chip removal mechanism
- Automatic tool changer
Safety & Compliance
Safety Equipment
- Safety enclosures
- Interlocks
- Emergency stop buttons
