Galvanized Steel Suspension Hook for Aerial Cables
This suspension hook is designed for insulated aerial cables and service lines. It can be installed on poles using steel straps and buckles.
Technical Specifications
Product Overview
Designed for Aerial Networks
The SOT suspension hook is a high-performance mounting component engineered specifically for insulated aerial cables and service lines. Constructed from durable steel with a hot-dip galvanized finish, this hook ensures excellent corrosion resistance and long-term reliability in demanding outdoor electrical distribution environments. It is designed for secure, easy installation onto poles when paired with steel straps and buckles.
Technical Specifications
Mechanical Properties and Dimensions

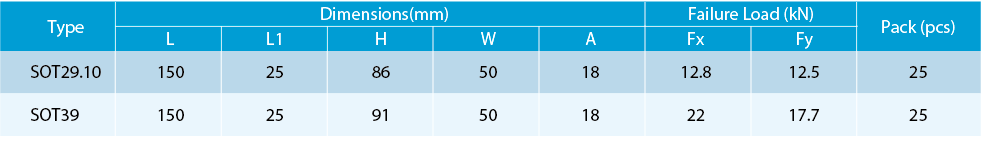

| Type | L (mm) | H (mm) | Fx (kN) | Fy (kN) |
|---|---|---|---|---|
| SOT29.10 | 150 | 86 | 12.8 | 12.5 |
| SOT39 | 150 | 91 | 22 | 17.7 |
- Material & Finish
- SteelHot-dip galvanized
- Standard Pack Quantity
- 25 pcs
- Mounting Method
- Pole installation using steel strap and steel buckle
