Technical Specifications
Product Overview
Aerial Cable Hook Solution
This galvanized steel hook is designed specifically for aerial cables and service lines. It features a durable, corrosion-resistant hot-dip galvanized finish, ensuring long-lasting performance in demanding outdoor environments. The component is engineered for compatibility with a wide range of mounting hardware, making it a versatile choice for electrical power transmission and distribution applications.
Technical Specifications
Compatible Hardware
- HEL5561
- HEL5562
- HEL5574
- SOT101.1
- SOT101.2
- SOT21
- SOT21.1
- SOT21.2
- SOT21.3
- SOT21.16
- SOT21.116
- SOT21.216
- Material & Finish
- Steel, hot-dip galvanized
Dimensions & Performance

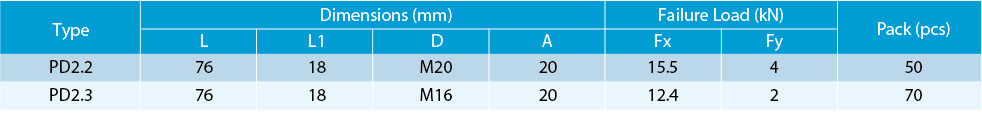

Dimensional & Load Table
| Type | Length (L) | Length (L1) | Diameter (D) | Dimension (A) | Failure Load Fx (kN) | Failure Load Fy (kN) | Pack Qty |
|---|---|---|---|---|---|---|---|
| PD2.2 | 76 | 18 | M20 | 20 | 15.5 | 4 | 50 |
| PD2.3 | 76 | 18 | M16 | 20 | 12.4 | 2 | 70 |
