Galvanized Steel Aerial Cable Hook
This galvanized steel hook is designed for insulated aerial cables and service lines. It can be installed on poles using steel straps and buckles for secure overhead power line applications.
Technical Specifications
Product Overview
Aerial Cable Support Solution
The Galvanized Steel Aerial Cable Hook (SOT) is specifically engineered for supporting insulated aerial cables and service lines in power distribution networks. These hooks are designed for secure pole-mounted installation using steel straps and buckles. Featuring a hot-dip galvanized finish, they offer robust corrosion resistance for long-term reliability in outdoor environments.
Material and Application
- Material Specifications
- SteelHot-dip galvanized
- Primary Application
- Support for insulated aerial cables and service lines

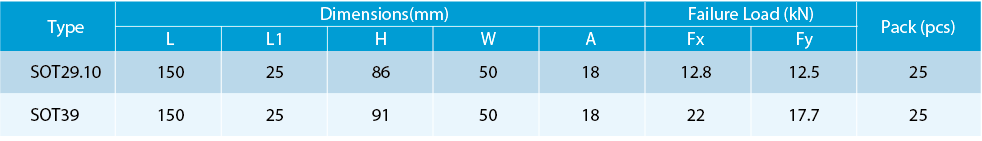

Technical Dimensions
Dimension Specifications
| Type | L (mm) | H (mm) | W (mm) | A (mm) |
|---|---|---|---|---|
| SOT29.10 | 150 | 86 | 50 | 18 |
| SOT39 | 150 | 91 | 50 | 18 |
Mechanical Strength
| Type | Fx (kN) | Fy (kN) |
|---|---|---|
| SOT29.10 | 12.8 | 12.5 |
| SOT39 | 22 | 17.7 |
Packaging
Pack Quantity
25 pcs
Pieces per pack
