Galvanized Steel Aerial Cable Hook
This steel hook is designed for aerial cables and service lines. It can be installed on poles using steel straps and buckles, or on walls with screws.
Technical Specifications
Product Overview
SOT76 Aerial Cable Hook
The SOT76 is a professional-grade aerial cable hook engineered for the secure installation of service lines and overhead cables. Designed for versatility, it can be mounted on poles using steel strapping or directly to walls via screw fixtures. Constructed from hot-dip galvanized steel, this hook offers superior corrosion resistance and long-term durability for outdoor power transmission and distribution infrastructures.
Technical Specifications
Installation Options
- Pole mounting with steel strap and buckle
- Wall mounting with screws
- Material & Finish
- Hot-dip galvanized steel
- Primary Applications
- Aerial CablesService LinesOverhead Power Lines

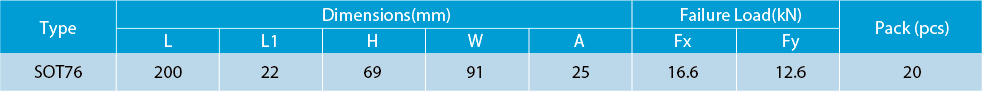

Dimensions and Load Performance
Failure Load
16.6 kN
Fx Failure Load
12.6 kN
Fy Failure Load
Dimensions Table
| Dimension Type | Value (mm) |
|---|---|
| Length (L) | 200 |
| L1 | 22 |
| Height (H) | 69 |
| Width (W) | 91 |
| A | 25 |
Logistics
- Packaging Unit
- 20 pcs/pack
