Galvanized Steel Aerial Cable Hook
This hook is designed for supporting aerial cables and service lines. It is made of hot-dip galvanized steel for corrosion resistance and durability.
Technical Specifications
Product Overview
Aerial Cable Support Solution
The SOT16.10 aerial cable hook is engineered for high-performance support of aerial cables and service lines. Constructed from durable steel with a hot-dip galvanized coating, this hardware provides exceptional corrosion resistance for long-term outdoor reliability. It serves as a robust fastening solution designed to meet stringent industry standards for strength and structural integrity in transmission and distribution applications.
Dimensions & Mechanical Specs

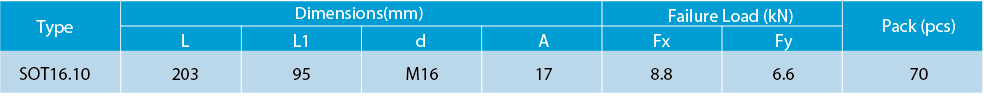

Technical Specifications
| Metric | Value |
|---|---|
| Total Length (L) | 203 mm |
| Threaded Length (L1) | 95 mm |
| Thread Diameter (d) | M16 |
| A Dimension | 17 mm |
| Failure Load Fx | 8.8 kN |
| Failure Load Fy | 6.6 kN |
Logistics & Material
- Construction Material
- SteelHot-dip Galvanized
- Pack Size
- 70 pcs
