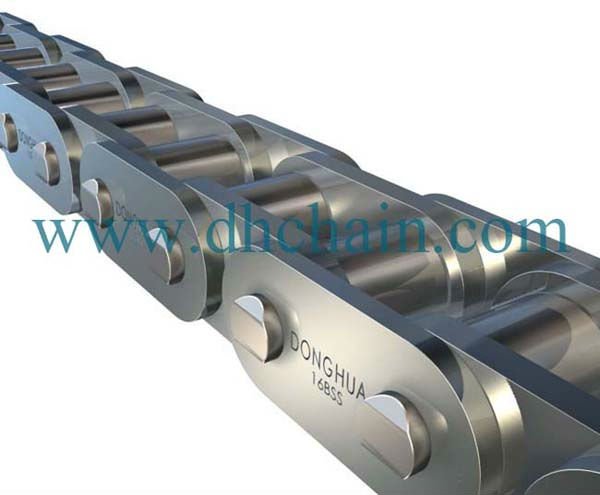

FV Series Conveyor Chain
This FV Series conveyor chain is designed for efficient material handling. It is constructed from durable materials to ensure reliable performance in various industrial applications.
Technical Specifications
Product Overview
FV Series Conveyor Chain
The FV series conveyor chain is engineered for heavy-duty industrial material handling applications, offering high tensile strength and wear resistance. These chains are precision-manufactured with heat-treated components to ensure reliable performance and an extended service life in demanding environments. Available in multiple configurations including various roller types, they are designed to provide smooth operation and efficient power transmission across diverse conveyor systems.
Certification & Standards
- Quality Standards
- ISO9001ISO14001ISO16969SGS Approved
Technical Specifications
Detailed Specifications
| Model | Inner Width (mm) | Pin Diameter (mm) | Min. Tensile Strength (kN) |
|---|---|---|---|
| FV40 | 18 | 10 | 40 |
| FV63 | 22 | 12 | 63 |
| FV90 | 25 | 14 | 90 |
| FV112 | 30 | 16 | 112 |
| FV140 | 35 | 18 | 140 |
| FV180 | 45 | 20 | 180 |
| FV250 | 55 | 26 | 250 |
| FV315 | 65 | 30 | 315 |
Available Roller Configurations
- Without rollers
- Small rollers (S type)
- Large rollers (P type)
- Flanged rollers (F type)
