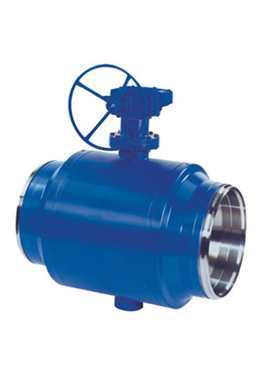

Fully Welded Ball Valve
This fully welded ball valve is designed for high-performance shutoff with minimal maintenance. The robust, fully welded construction eliminates potential leak paths, while the full-bore design minimizes pressure drop.
Technical Specifications
Product Overview
Industrial Fully Welded Ball Valve
This fully welded ball valve is engineered for high-performance industrial applications requiring reliable shutoff and minimal maintenance. Its integral forged steel construction eliminates potential leak paths, ensuring superior structural integrity and safety in demanding environments. Designed for durability, the valve features a mirror-polished ball and carbon-reinforced PTFE seats, providing bubble-tight sealing and low operational torque.
Performance & Ratings
- Size Range
- 1/2” to 40”
- Pressure Rating
- CLASS 150 to 2500
Material & Corrosion Resistance
- Corrosion Standards Compliance
- NACE MR 0175/ISO 15156NACE MR 0103
- Plating Standards
- ASTM B733ASTM B656
Design & Engineering
Design Standards
- ASME B16.34
- API 6D
- API 608
- BS EN ISO 17292
- ISO 14313
Connection Types
RFRTJBW
Face to Face Standards
- ASME B16.10
- API 6D
- EN558
Connection Standards
| Standard Type |
|---|
| ASME B 16.5 |
| ASME B 16.47 |
| ASME B 16.25 |
| EN1092 |
| JIS B2220 |
| GOST 12815 |
