Full Electric Injection Molding Machine

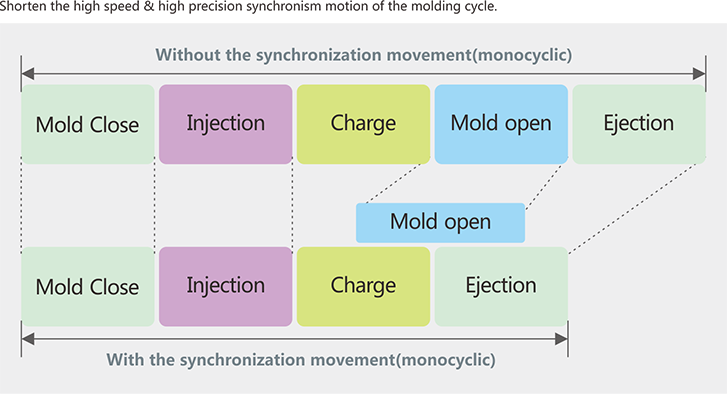

This electric injection molding machine is designed for precision and energy efficiency. It features an advanced control system for optimized molding cycles.
Technical Specifications
Overview
High-Precision Full Electric Molding

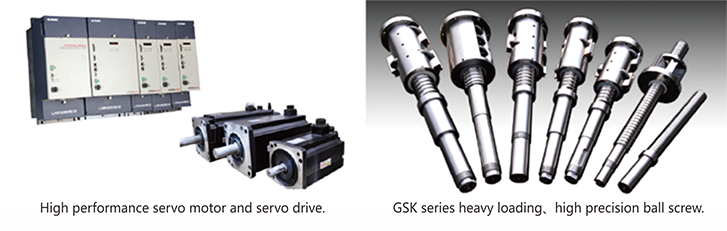

This full electric injection molding machine is engineered for exceptional precision, speed, and energy efficiency. By utilizing advanced servo control and heavy-duty ball screw technology, it delivers consistent, high-quality production across diverse applications including electronics, medical devices, and optics. Its all-electric design eliminates hydraulic oil usage, offering a cleaner, quieter, and more environmentally friendly manufacturing solution.
Key Features
- Suitable Applications
- ElectronicsCommunicationOpticsMedical EquipmentFood PackagingConsumer Goods
Injection Performance
Injection Performance
50 ton
Clamping Force

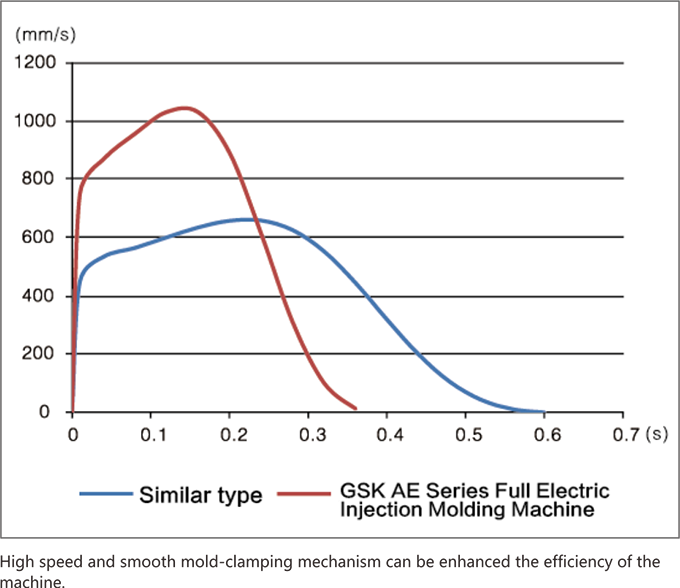

500 mm/s
Max Injection Speed
289 Mpa
Max Injection Pressure
Injection Unit Specifications
| Metric | Range/Value |
|---|---|
| Screw Diameter | 18 - 28 mm |
| Injection Capacity | 19 - 61.6 cm³ |
| Injection Weight (PS) | 18 - 58.5 g |
| Injection Rate | 114 - 196 cm³/s |
| Plasticizing Capacity | 17 - 46 Kg/h |
Clamping and Dimensions
Clamping System

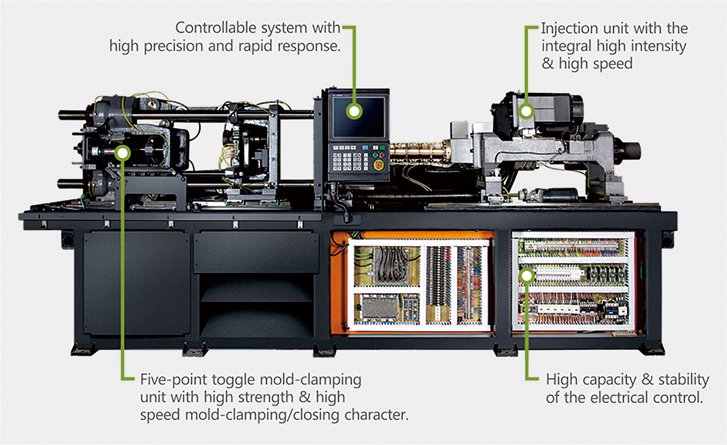

- Clamping Type: Five-point toggle
- Clamping Force: 50 ton
- Drive Travel: 250 mm
- Ejecting Force: 20 kN
- Ejection Stroke: 70 mm
- Number of Thimbles: 5
- Machine Dimensions
- 3.71m x 1.02m x 2.06m
- Machine Weight
- 3.2 t
