Full Electric Injection Molding Machine

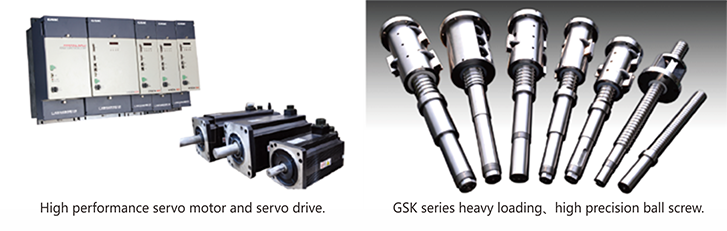

This full electric injection molding machine is designed for high precision and energy efficiency. The machine features a servo-driven system for precise control over injection, clamping, and ejection processes.
Technical Specifications
Overview
High-Performance Electric Injection Molding
This full electric injection molding machine is engineered for precision, high-speed operation, and energy efficiency. By utilizing an advanced servo-driven system for injection, clamping, and ejection, it ensures consistent part quality while reducing energy consumption and noise levels. Designed for versatility, it is suitable for demanding applications in electronics, medical devices, optics, and consumer goods.
- Key Advantages
- High PrecisionEnergy EfficientHigh SpeedEnvironmentally FriendlyFully Electric
Injection Unit
Injection Performance
200 ton
Clamping Force
475 cm³
Max Injection Capacity
300 mm/s

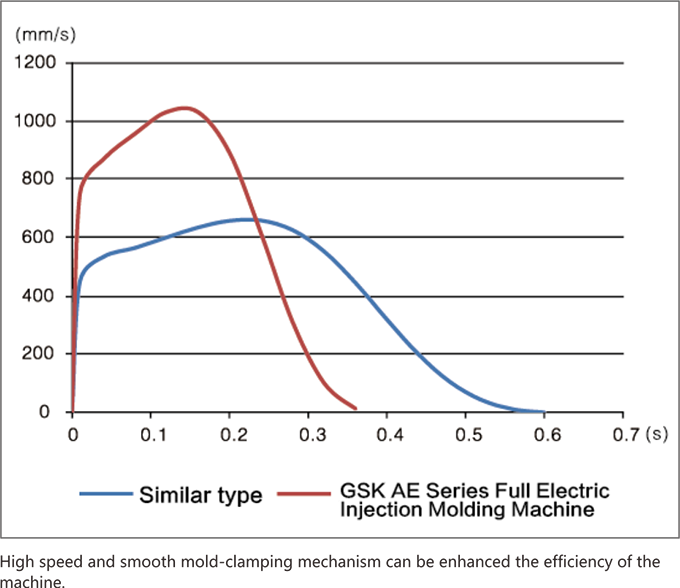

Max Injection Speed
Injection Specifications
| Parameter | Range |
|---|---|
| Screw Diameter | 36 - 55 mm |
| Injection Pressure | 166 - 260 Mpa |
| Plasticizing Capacity | 81 - 171 Kg/h |
| Screw Rotation Speed | 0 - 350 rpm |
| Heating Power | 9.8 - 15.1 kW |
Clamping Unit
Clamping Specifications
- Clamping Force: 200 tons
- Drive Travel: 520 mm
- Minimum Mould Thickness: 280 mm
- Maximum Mould Thickness: 580 mm
- Ejection Force: 60 kN
- Ejection Stroke: 150 mm
Physical Dimensions
Machine Dimensions
- Overall Dimensions: 6.03m x 1.55m x 2.50m
- Machine Weight: 11.2t - 11.8t
- Number of Thimbles: 13
