Full Electric Injection Molding Machine

This full electric injection molding machine is designed for high-precision plastic part manufacturing. It utilizes a servo-driven system for energy efficiency and accurate, repeatable molding cycles.

Request a Quote Download PDFPDF

GSK AE100 Full Electric Injection Molding Machine - Image 1

Technical Specifications

Overview

High-Precision Electric Injection Molding

This full electric injection molding machine represents a significant advancement in precision manufacturing technology. Engineered for high-speed operation and exceptional energy efficiency, it delivers consistent, repeatable molding cycles suitable for demanding industries. Its robust mechanical design and advanced servo control systems ensure reliable performance for complex, intricate components.

Suitable Industries: Medical DevicesElectronicsTelecommunicationsOptical ComponentsFood PackagingConsumer Goods

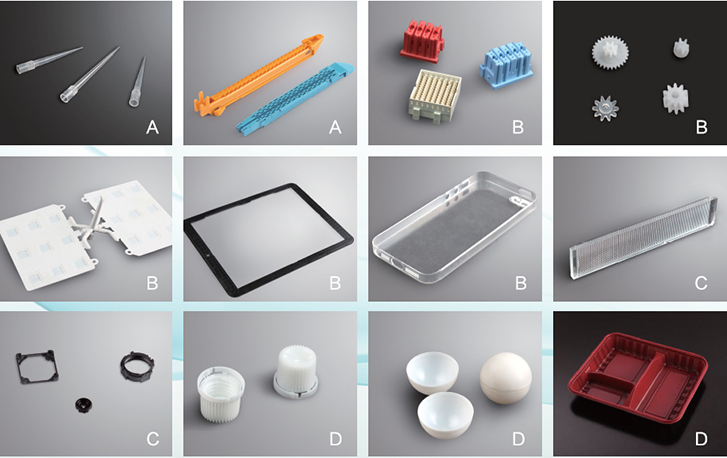

Injection molding application examples — Example of high-precision parts produced by the machine.

Injection Performance

Injection Capabilities

100 ton

Clamping Force

340 mm/s

Max Injection Speed

188 cm³

Max Injection Capacity

Injection Unit Specifications

Parameter	Range
Screw Diameter	25 - 40 mm
Injection Weight (PS)	51 - 179 g
Max Injection Pressure	169 - 287 MPa
Plasticizing Capacity	27 - 106 Kg/h

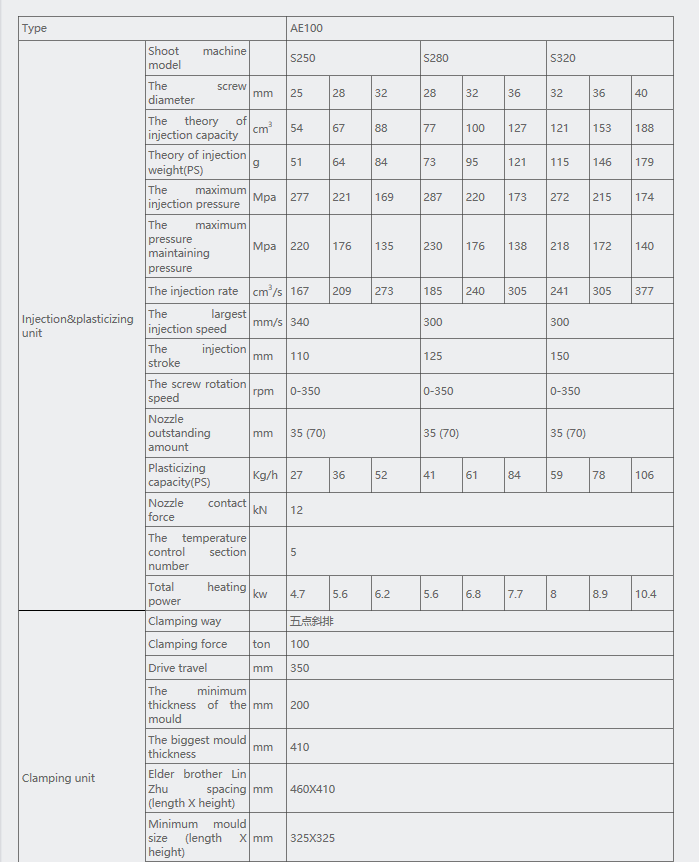

Injection molding machine technical overview — Detailed view of the injection unit and core technical parameters.

Clamping Unit

Clamping Specifications

Clamping Force: 100 tons
Drive Travel: 350 mm
Minimum Mould Thickness: 200 mm
Maximum Mould Thickness: 410 mm
Mould Size Range: 325x325 mm to 460x410 mm

Mechanical Dimensions

Physical Dimensions & Weight

Overall Dimensions: 4.85m x 1.28m x 2.24m
Machine Weight: 5.3t - 5.5t
Ejecting Force: 25 kN
Ejection Stroke: 100 mm

Machine dimensions and physical specifications — Dimensional diagram and physical weight specifications for the unit.

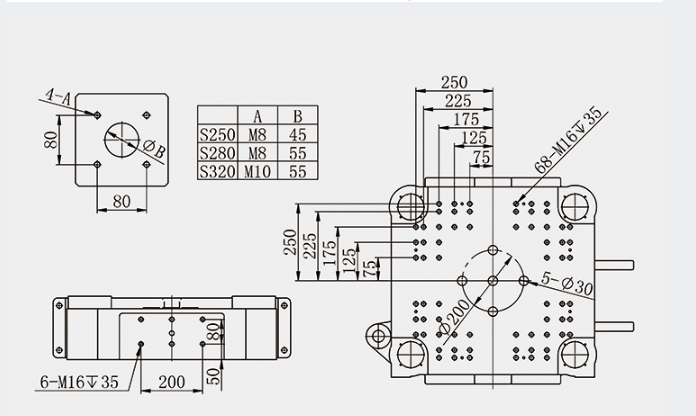

Technical schematic drawing — Detailed technical drawing showing mounting points and structural dimensions.
