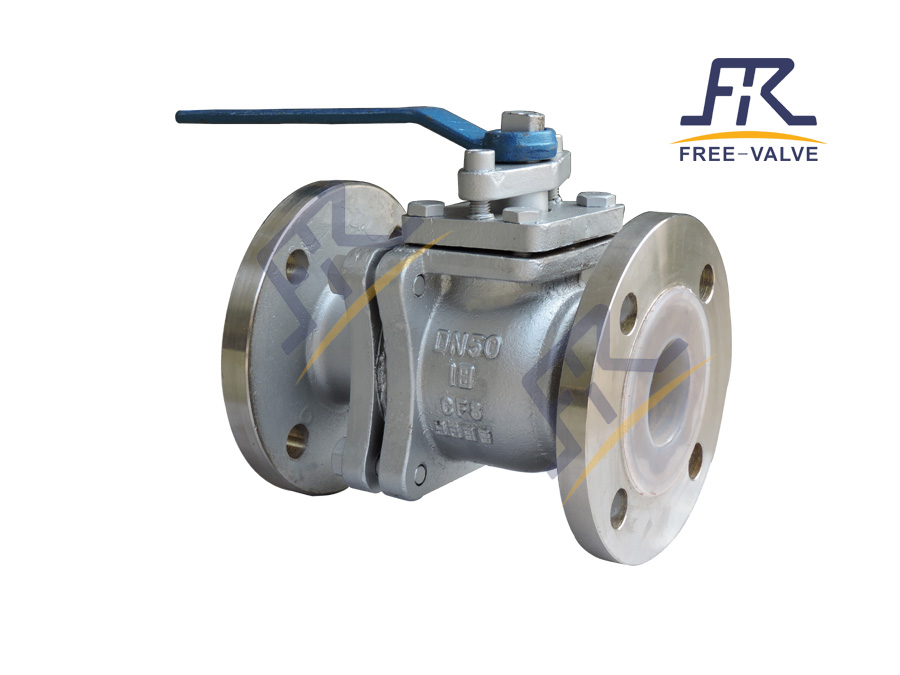

Full Bore Flanged Ball Valve with Fluorine Lining
This fluorine-lined ball valve offers exceptional resistance to corrosion and aging, making it suitable for handling acids, alkalis, and other corrosive media. The valve features zero leakage and superior sealing performance due to its fluorine plastic liner and stem-integrated ball design.
Technical Specifications
Product Overview
Corrosion-Resistant Full Bore Ball Valve
This full bore flanged ball valve is engineered for superior performance in highly corrosive environments, utilizing advanced fluorine lining technology. Its integrated stem and ball structure ensures zero leakage and high operational stability, making it an ideal choice for demanding industrial applications. Designed to handle aggressive media, this valve offers reliable shut-off capabilities and minimal fluid resistance.
Technical Specifications
- Size Range
- DN15 - DN350
- Pressure Range
- Class 150PN6PN10
- Connection Type
- Flange
Materials
Lining Materials
PTFEPFAFEP
Body Materials
WCBCF8CF8M
Operational Details
Operating Modes
- Manual lever
- Worn gear
- Electric
- Pneumatic
Compliance & Standards
Standard Compliance
| Criteria | Standard |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, ASME B16.10 |
Applications
- Suitable Industries
- ChemicalPetroleumMetallurgyElectric Power
