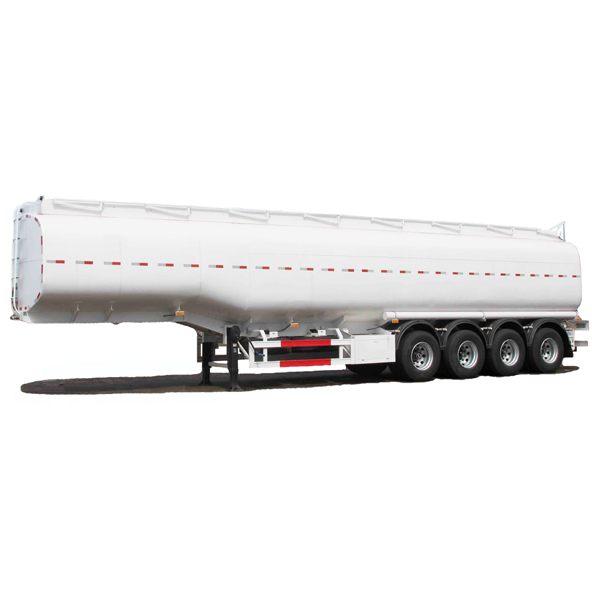

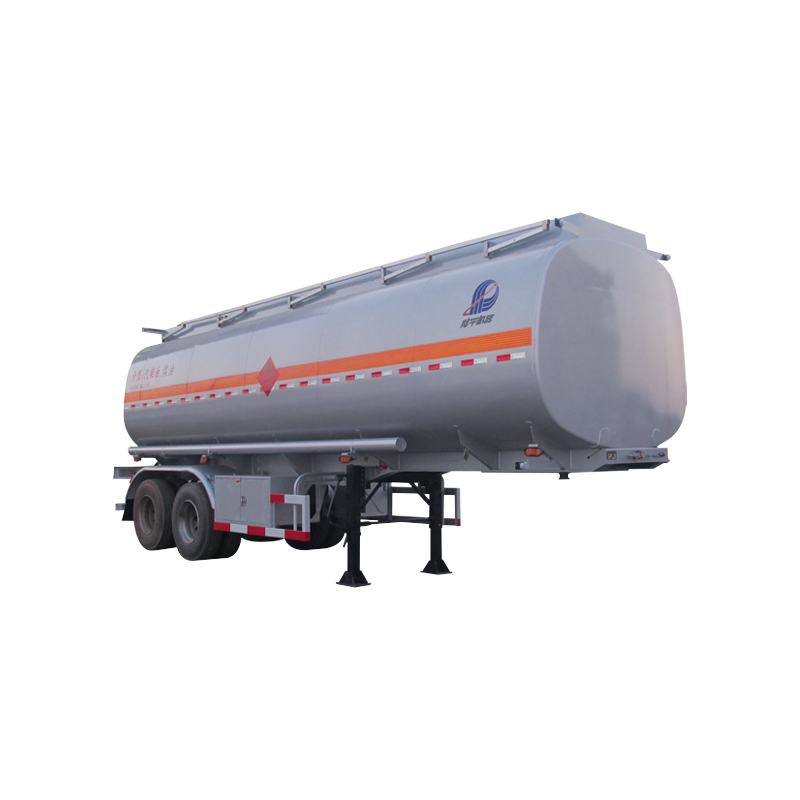

Fuel Tanker Semi-Trailer
This fuel tanker semi-trailer is engineered for the safe and efficient transportation of liquid fuels like gasoline and diesel. It features a robust chassis with a multi-axle configuration for optimal load distribution and enhanced stability.
Technical Specifications
Overview
High-Capacity Fuel Transport Solution
This fuel tanker semi-trailer is engineered for the safe, reliable, and efficient long-haul transportation of liquid fuels. Featuring a monoblock cylindrical design constructed from high-tensile steel or stainless steel, it offers exceptional structural integrity and durability. Equipped with advanced braking systems, heavy-duty suspension, and customizable axle configurations, this trailer ensures optimal load distribution and stability on the road.
Tank Specifications
Total Volume
40 CBM
Minimum Capacity
60 CBM
Maximum Capacity
- Tank Shape
- Monoblock cylinder
- Material
- 5-6mm SteelStainless 304
- End Plate Thickness
- 6 mm
Components & Accessories
Discharging System
- 2-4 sets of 100mm discharging valves
- 2 pcs, 6m long 4-inch rubber hoses
Standard Accessories
Tool box
- Manhole Covers
- Aluminum alloy API, 500mm, 2 sets with breather valves
Chassis & Running Gear
- Main Beams
- Heavy duty I-beam, high tensile steel Q345B, automatic submerged-Arc welded
- Axle Configuration
- 2-3 axles
- Landing Gear
- Two-speed, manual operating, heavy duty
- King Pin Size
- 2 inch or 3.5 inch bolt-in
- Suspension Options
- Mechanical suspensionAir suspension
Braking & Wheels
Wheel Rim Options
- 8.5-20
- 9.0-20
- 8.25-22.5
- 9.0-22.5
Tire Options
- 11.00R20
- 12.00R20
- 11R22.5
- 12R22.5
- 315/80R22.5
- Pneumatic Braking System
- Relay valve, spring brake chamber, 45L air tanks
Finishing
- Painting Process
- Sand blasting, 1 coat anticorrosive prime, 2 coats final paint
