Technical Specifications
Product Overview
High-Efficiency FTTH Production Line
This advanced optical cable production line is specifically engineered for the manufacturing of FTTH drop fiber optic cables, including 2.0x3.0mm and 2.0x5.0mm specifications. The system integrates a comprehensive range of processes, from fiber payoff and tension control to precision extrusion, cooling, and winding. Designed for high-speed operation and consistent quality, it utilizes an IPC+PLC control system to ensure reliable performance for telecommunications and networking applications.
Technical Performance
Production Capacity
9 km/h
2.0x3.0mm Cable
7 km/h
2.0x5.0mm Cable
- Production Speed
- 190 m/min
- Fiber Tension
- 0.4N-1.2N ±0.05N
- Additional Loss (SM Fiber)
- ≤0.02 dB/km
Physical Requirements
- Total Line Length
- 26 m
- Power Supply
- 63KVA, AC380V ±10% 50HZ (3-phase, 5-wire)
- Normal Running Power
- 35 kW/h
Line Configuration
Standard Configuration
- Φ800 Strengthen member bigger steel wire pay-off
- 4 heads fiber + 2 head FRP/small steel wire pay-off
- Mobile mold supporting
- 50 extruder
- Dryer + hopper
- IPC+PLC program control system
- Moving water trough and warm water tank
- Fixed cooling water trough and tank
- Laser diameter gauge
- Dual-wheel capstan
- Cable accumulator

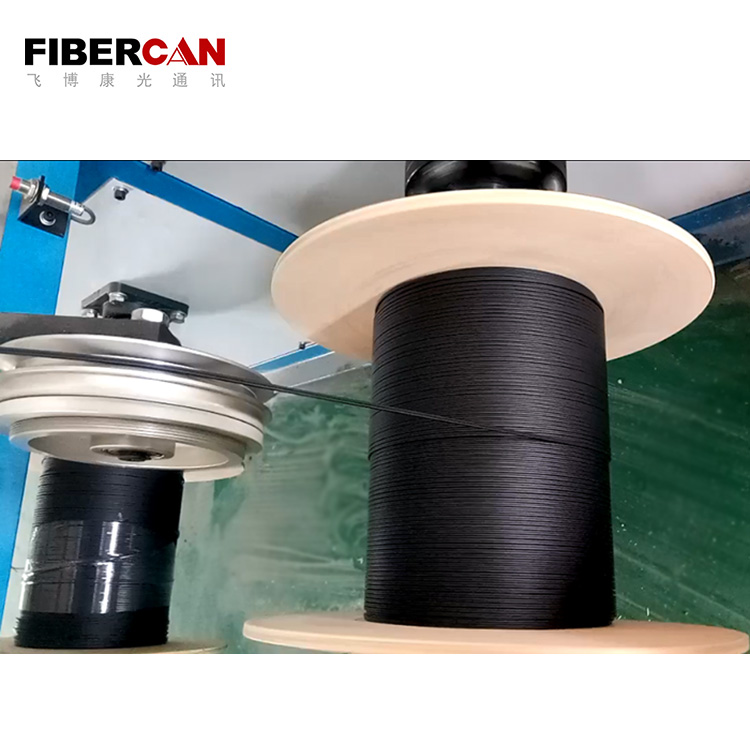

- Dual-wheel take-up
- Compatible Cable Materials
- LSZHPVCPE
