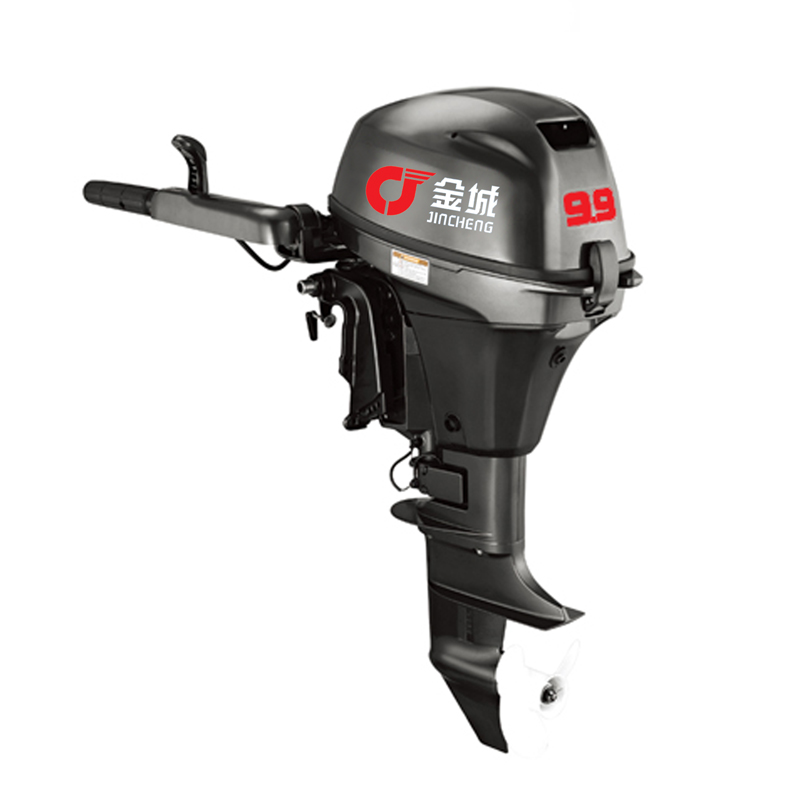

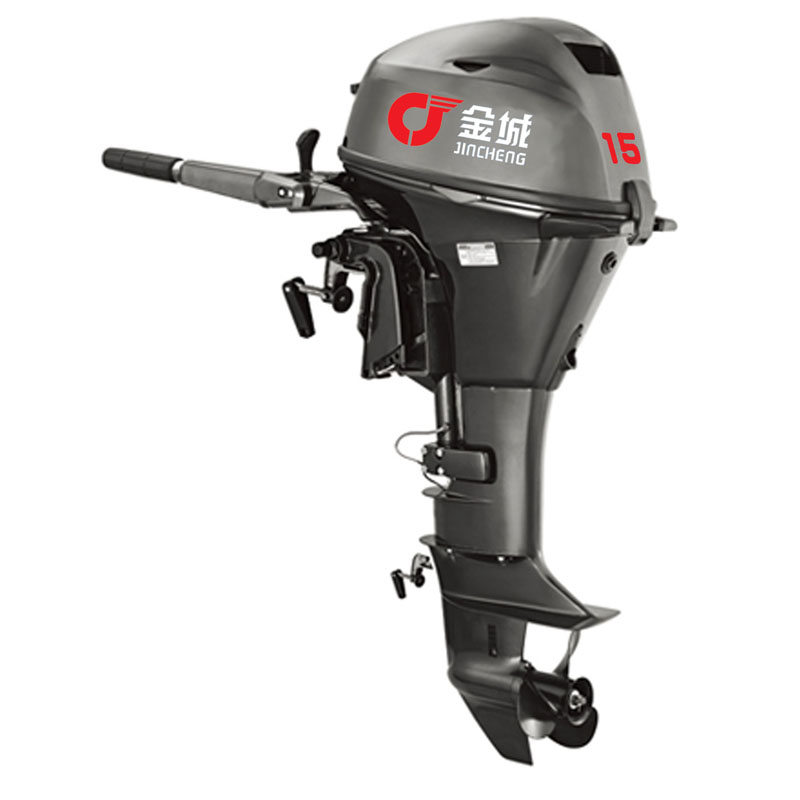

Four-Stroke Outboard Engine for Marine Propulsion
This four-stroke outboard engine is designed for marine propulsion applications. It features a robust construction and tiller handle for steering and throttle control.
Technical Specifications
Overview
High-Performance Marine Propulsion
This four-stroke outboard engine is engineered for reliable marine propulsion, offering a balance of power and fuel efficiency. Featuring a two-cylinder design and advanced water-cooling systems, it ensures stable performance for both professional and recreational applications. With versatile starting options and a durable construction, this engine provides a dependable solution for various small to medium-sized watercraft.
Performance
Maximum Output
15 HP
Rated Power
5,500 rpm
at RPM
- Operating RPM Range
- 5000 - 6000 rpm
Engine Specs
- Engine Configuration
- Two Cylinder, Four-Stroke
- Displacement
- 362 cc
- Compression Ratio
- 9.3
- Bore x Stroke
- 63 x 58.1 mm
Technical Details
- Fuel System
- SOHC, Carburetor
- Cooling
- Water/Thermostatic Control
- Ignition System
- CDI Micro Computer
- Alternator Output
- 12V/10A
Operation
- Starting Method
- ManualElectric
- Gear Shift
- Forward, Neutral, Reverse
- Gear Ratio
- 2.08
Dimensions & Weight
Shaft Length
- S = 15 inch
- L = 20 inch
- Dry Weight
- 53.7 kg
Product Series
Available Series
10HP15HP20HP25HP30HP50HP60HP
