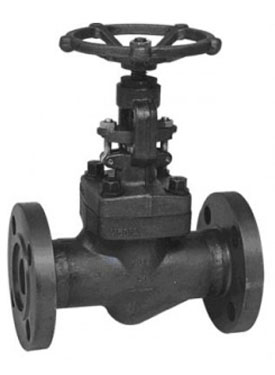

Forged Steel Globe Valve for High-Pressure Applications
This globe valve is made of forged steel and designed for high-pressure environments. It is suitable for throttling and shut-off applications in pipelines.
Technical Specifications
Product Overview
High-Performance Forged Steel Globe Valve
These forged steel globe valves are engineered for maximum service life and dependability in demanding high-pressure environments. Designed for precise flow control, throttling, and shut-off applications, they offer versatility with options for full or reduced port configurations. Available in a wide range of body materials and trim options, these valves meet rigorous international standards for industrial safety and performance.
Technical Specifications
- Size Range
- 1/2" ~ 2" (DN15 ~ DN50)
- Pressure Rating
- ANSI 150lb ~ 2500lb (PN 1.0 ~ PN 320)
- Body Materials
- A105LF2F9F11F22F304F304LF316F316LF321F51Alloy Steel
- Operation
- Handwheel
Design Features
Design Features
- Full port or reduced port design
- General or needle disc
- Bolted, welded, or pressure sealed bonnet
- Optional Y structure
Compliance & Standards
Applicable Standards
| Category | Standards |
|---|---|
| Design | API 602, ASME B16.34, BS 5352, DIN3352 |
| Face to Face | ASME B16.10, EN 558, DIN3202 |
| End Flange | ASME B16.5, DIN2533 |
| Butt Welding | ASME B16.25, DIN3239 |
| Socket Welded | ASME B16.11 |
| Threaded | ASME B1.20.1 |
| Inspection/Test | API 598, DIN 3202 |
