Forced Circulation Pump
This axial flow pump is designed for large flow and low head applications. It is widely used in industries such as chemical, petrochemical, alkali production, salt making, fertilizer, and water treatment.
Technical Specifications
Product Overview
High-Efficiency Axial Flow Circulation

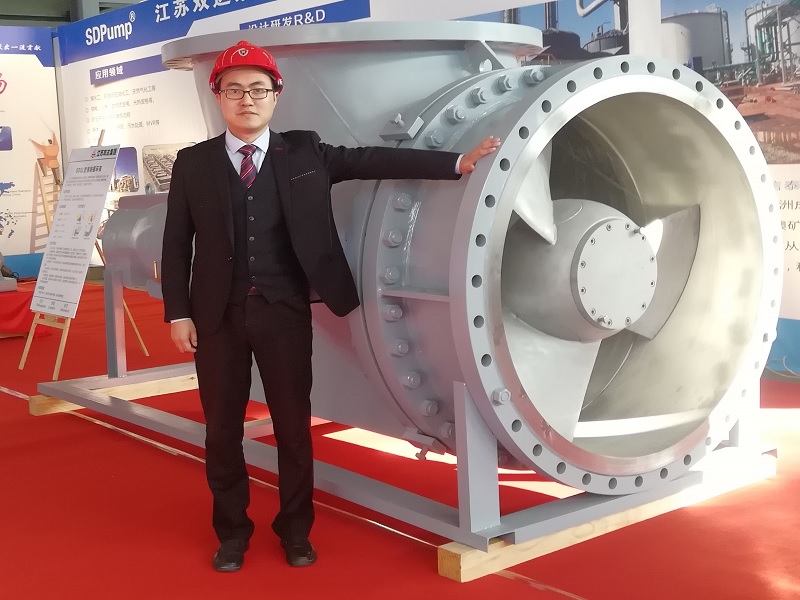

The SDQL Forced Circulation Pump is a robust, horizontally mounted, radially split, overhung pump engineered for demanding industrial processes. Designed for large flow and low head requirements, it offers exceptional reliability and efficiency in chemical, petrochemical, and water treatment applications. The pump features a versatile design with adjustable performance settings and heavy-duty bearing housing to ensure long service life and reduced maintenance costs.
Performance Specifications
Operational Range
45,000 m³/h
Max Flow Capacity
8 m
Max Discharge Head
180 °C
Max Temperature
Technical Details
Transmission Methods
- Motor Driven

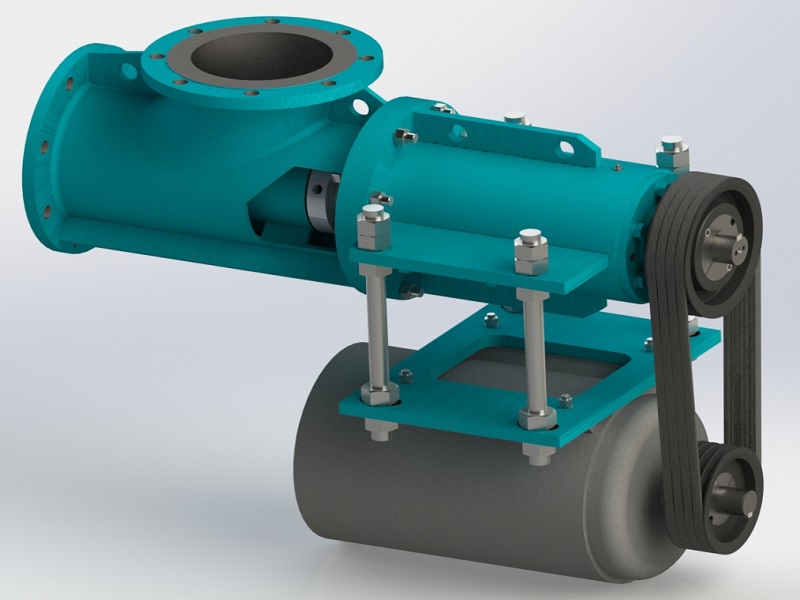

- V-Belt Driven
- Gear Driven
Model Size Reference
| Pump Type | Size (mm) | X Dimension |
|---|---|---|
| SDQL250 | 250 | 250 |
| SDQL400 | 400 | 400 |
| SDQL1000 | 1,000 | 730 |
| SDQL1400 | 1,400 | 1,400 |
- Design Pressure
- 1 MPa
- Mounting Types
- Direct CoupledOverhungSemi-overhung
Application Fields
- Suitable Industries
- ChemicalPetrochemicalAlkali ProductionSalt MakingFertilizerWater Treatment
