Technical Specifications
Overview
Efficient Urban Mobility

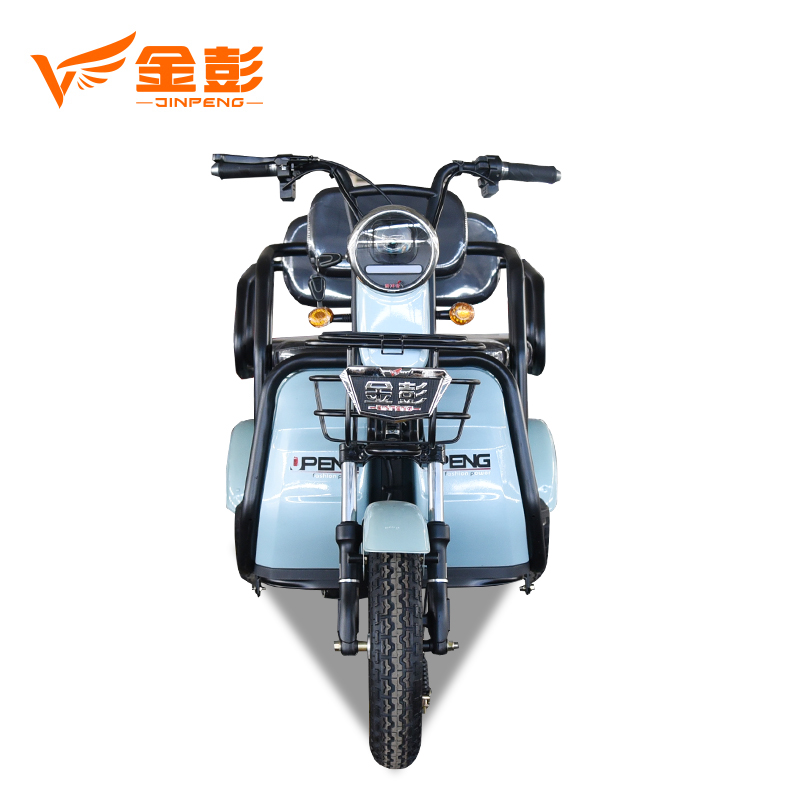

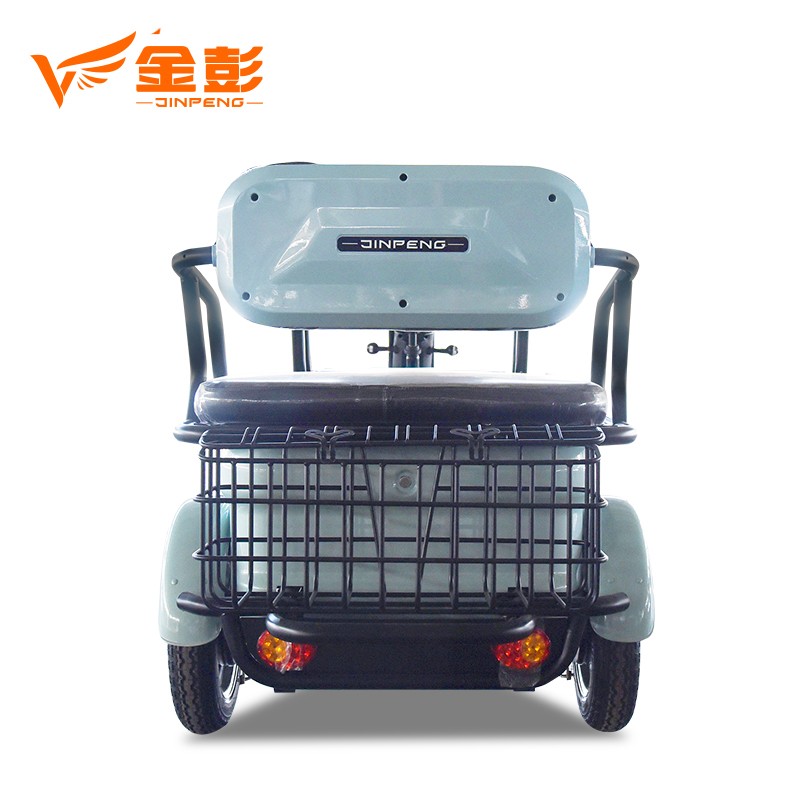

The XD folding electric passenger tricycle is designed for versatile urban transportation, capable of carrying three passengers while maintaining a compact footprint. Featuring a robust electric drivetrain and a folding mechanism, it offers an eco-friendly solution for short-distance travel and daily commuting. Its durable construction and significant cargo capacity make it a practical choice for both personal and light commercial use.
Performance
Key Performance Metrics
40 km
Range per Charge
25 km/h
Max Speed
28 %
Max Grade Ability
Technical Specifications
Technical Details

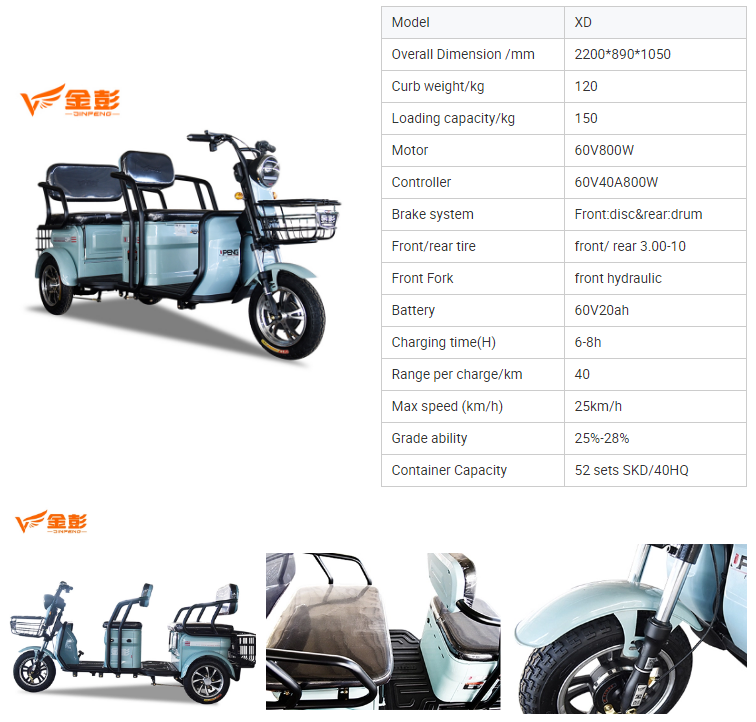

| Component | Specification |
|---|---|
| Motor | 60V 800W |
| Controller | 60V 40A 800W |
| Battery | 60V 20Ah |
| Charging Time | 6-8 Hours |
| Brake System | Front Disc / Rear Drum |
| Front Fork | Hydraulic |
| Tire Size | 3.00-10 (Front & Rear) |
Dimensions & Capacity
Dimensions and Capacity
- Dimensions: 2200 x 890 x 1050 mm
- Curb Weight: 120 kg
- Loading Capacity: 150 kg
- Container Capacity: 52 sets SKD/40HQ
Compliance
Certifications
EEC Certified
