Folding Electric Mountain Bike with Fat Tires

This folding electric mountain bike is equipped with fat tires for enhanced stability and traction on various terrains. It features a suspension system and a robust folding frame for easy storage and transport.

Request a Quote Download PDFPDF

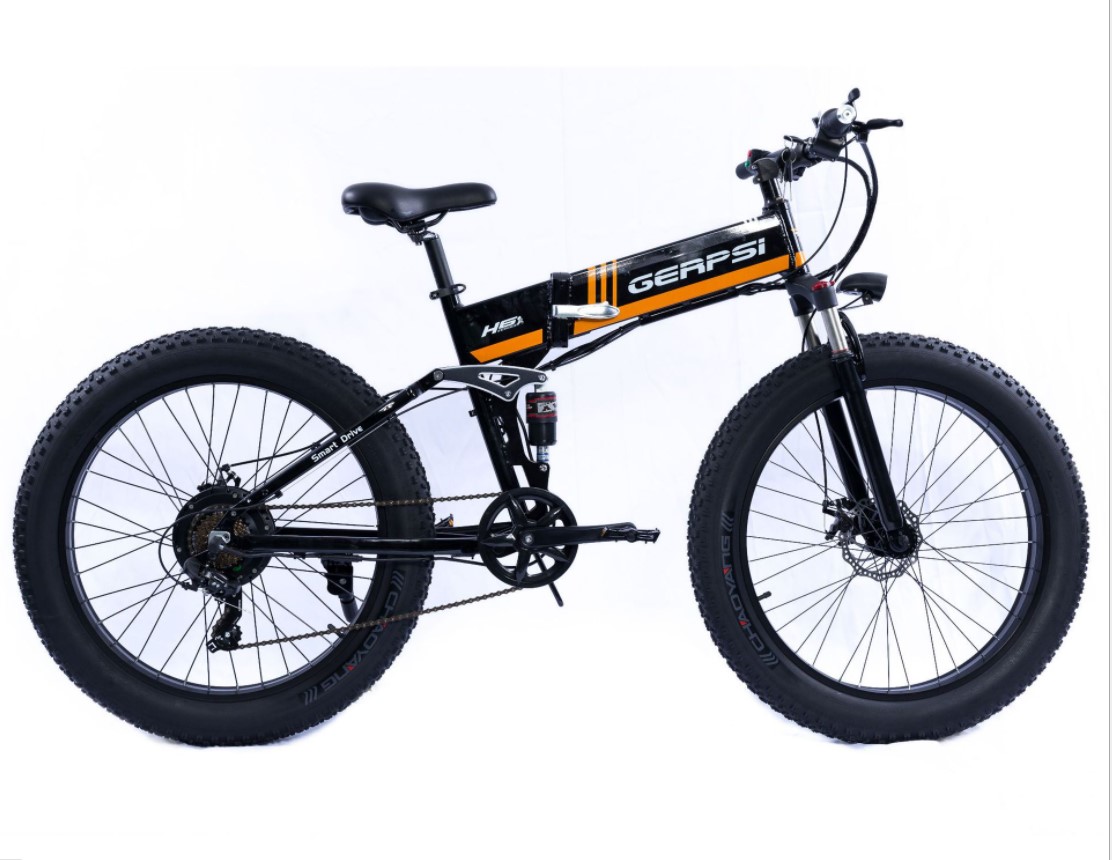

eu warehouse bike mountain ebike china wholesale bicycle smart twitter mountain bike with - Image 1

Technical Specifications

Overview

Versatile All-Terrain E-Bike

This folding electric mountain bike is engineered for both urban commuting and rugged off-road adventures. Featuring a robust 6061 aluminium alloy frame and high-traction fat tires, it offers exceptional stability and comfort on diverse terrains. With a powerful 48V electric drive system and a convenient folding design, this bike combines high-performance capabilities with practical portability.

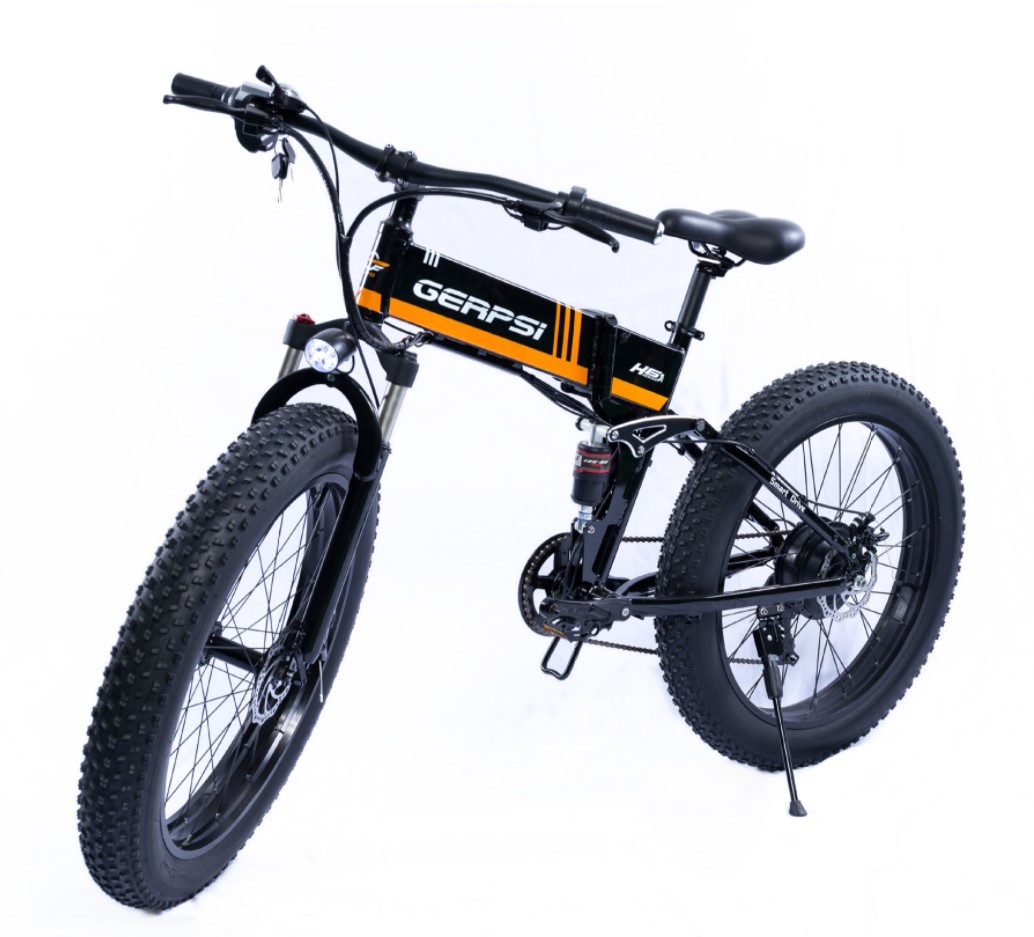

The e-bike in an outdoor setting. — Designed for all-terrain adventures and reliable performance.

Performance

Maximum Speed: 25 km/h
Endurance Range: 30 km
Maximum Load Capacity: 120 kg

Electrical System

Motor Power: 48V 350W
Battery Type: 48V 10AH Lithium Iron
Charging Time: 3-5 hours
Controller: DC 48V Dual Mode
Display: LED

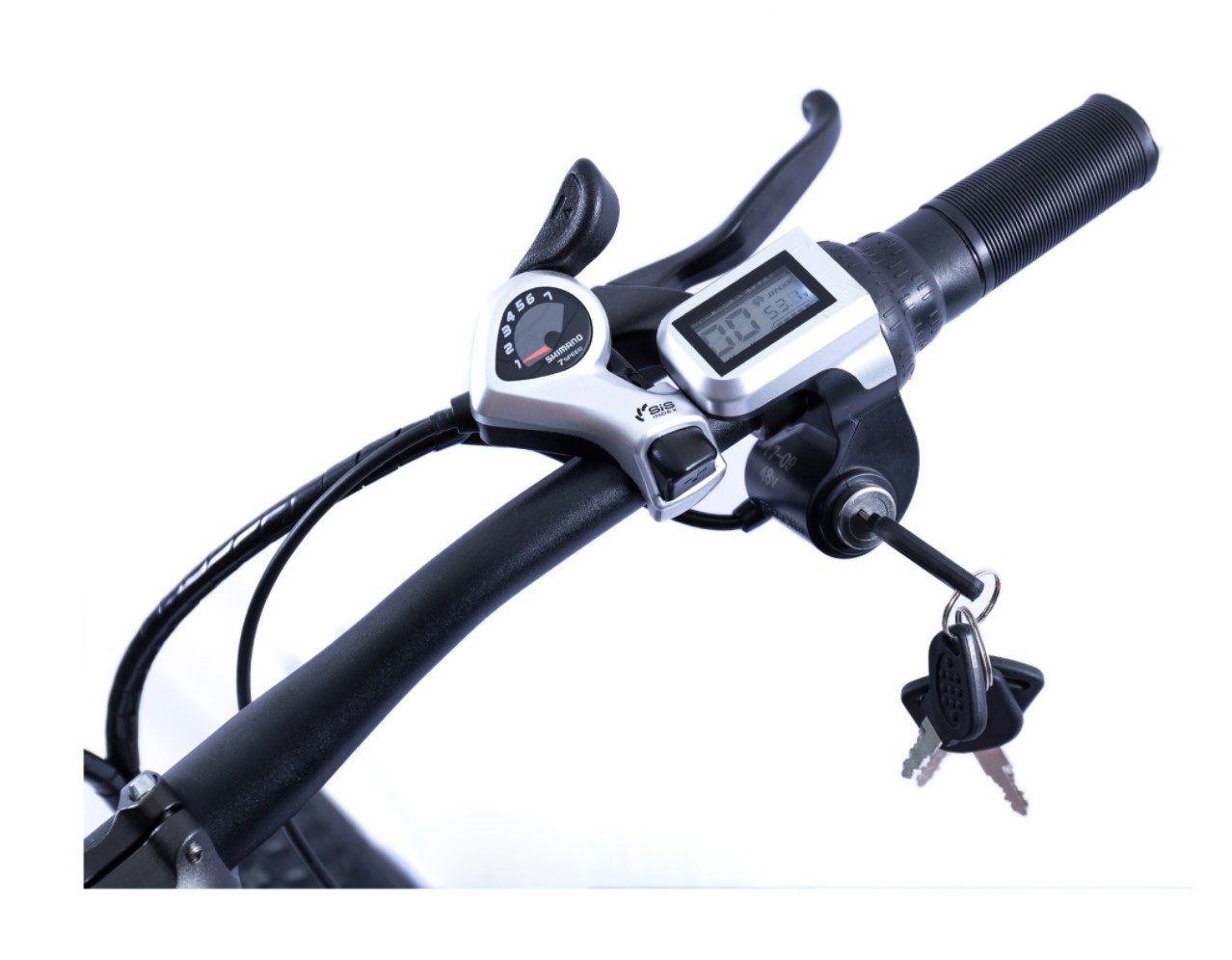

Close up of the handlebar assembly with LED display and gear shifters. — Handlebar controls featuring an integrated LED display and gear shifting system.

Components & Build

Frame Material: Aluminium Alloy 6061
Tire Dimensions: 26 inch x 4.0
Brake System: Front and Rear Disc Brakes

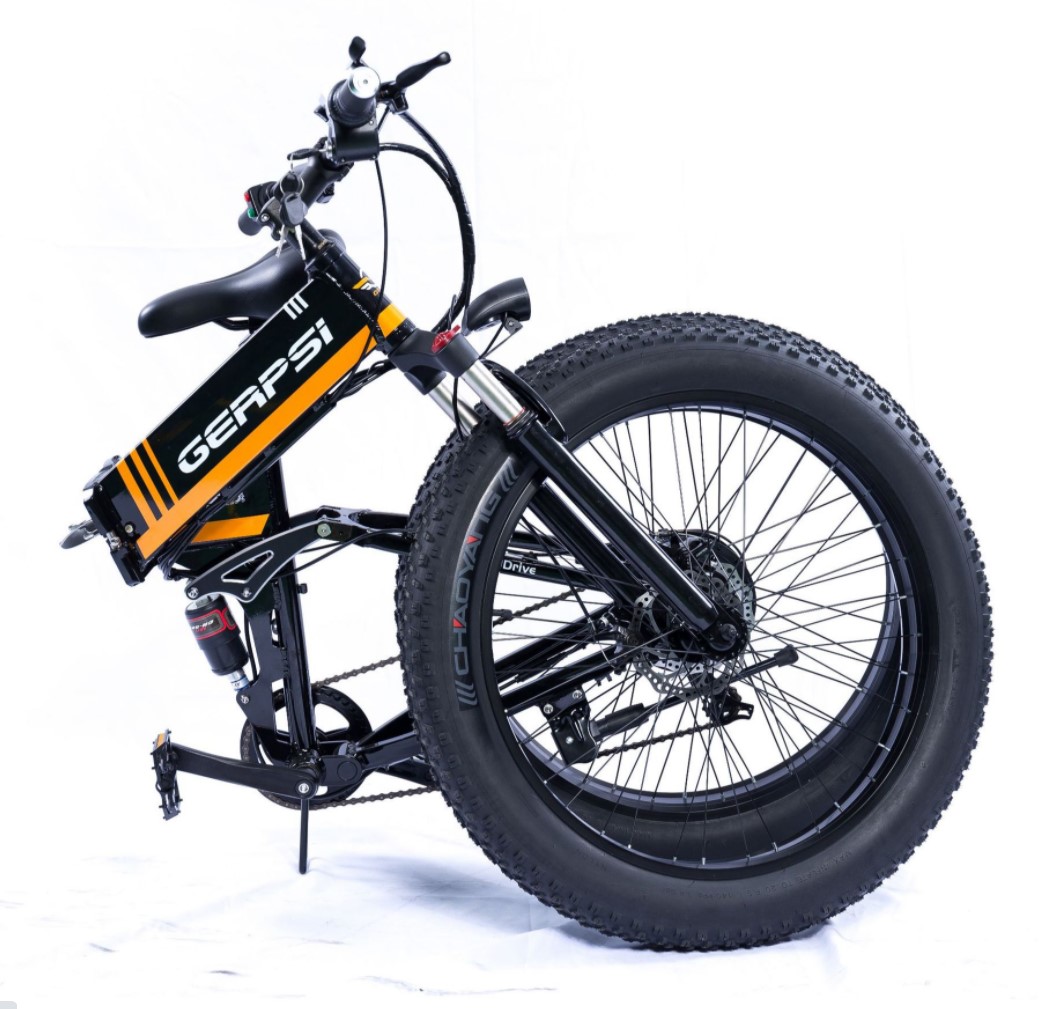

Robust folding frame design with high-traction fat tires for stability.

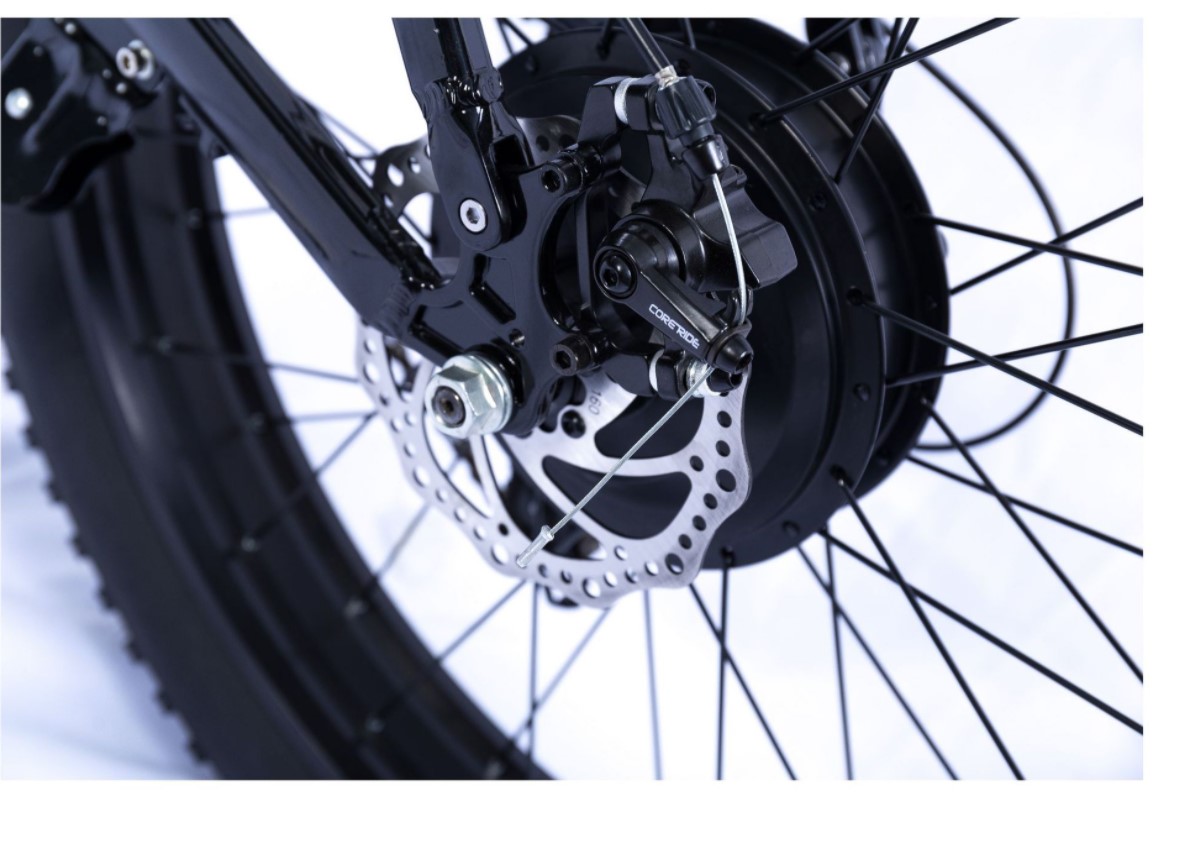

Close up of the rear disc brake system. — Responsive front and rear disc brake system for reliable stopping power.
