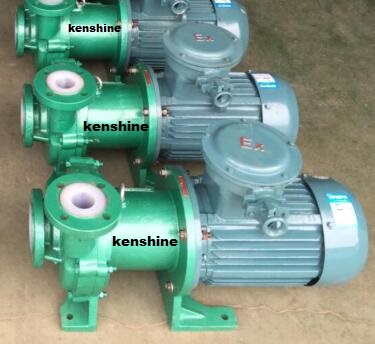

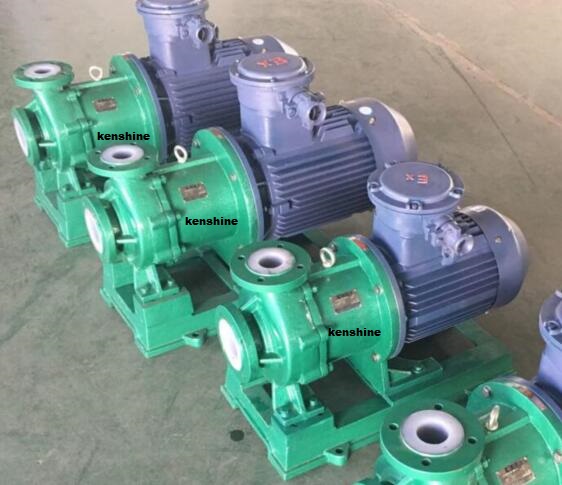

Fluoroplastic Magnetic Drive Chemical Pump
This chemical process pump is designed for handling corrosive fluids. The fluoroplastic material of the parts provides excellent corrosion resistance.
Technical Specifications
Product Overview
Fluoroplastic Magnetic Drive Chemical Pump
This magnetic drive chemical pump is engineered for the safe and reliable transport of aggressive fluids, including acids, alkalis, oils, and toxic or volatile liquids. By utilizing a magnetic coupling design, the pump eliminates the need for mechanical seals, effectively preventing leaks and ensuring containment of hazardous media. Constructed with fluoroplastic wetted parts, it provides exceptional chemical resistance, making it an ideal solution for critical applications in chemical processing, pharmaceuticals, and electroplating industries.
Key Applications
- Suitable Industries
- Chemical IndustryPharmacyElectroplatingFood ProcessingWater CirculationFilter Systems
Performance Metrics
Performance Highlights
100 m3/h
Max Flow Rate
32 m
Max Head
18.5 kW
Max Power
Technical Specifications
Technical Data Table
| Model | Flow (m3/h) | Head (m) | Power (kW) | Efficiency (%) |
|---|---|---|---|---|
| CQB15-10-85F | 1.8 | 8 | 0.12 | 15 |
| CQB20-15-105F | 3 | 12 | 0.37 | 19 |
| CQB32-25-125F | 3.2 | 20 | 0.75 | 26 |
| CQB40-32-115F | 6.3 | 15 | 0.75 | 35 |
| CQB40-32-145F | 6.3 | 25 | 1.5 | 29 |
| CQB50-40-125F | 12.5 | 20 | 2.2 | 41 |
| CQB50-40-160F | 12.5 | 32 | 3 | 39 |
| CQB65-50-125F | 25 | 20 | 3 | 47 |
| CQB65-50-160F | 25 | 32 | 5.5 | 46 |
| CQB80-65-125F | 50 | 20 | 7.5 | 54 |
| CQB80-65-160F | 50 | 32 | 11 | 52 |
| CQB100-80-125F | 100 | 20 | 11 | 55 |
| CQB100-80-160F | 100 | 32 | 18.5 | 56 |
Operating Parameters
Operating Limits
- Speed: 2800 - 2900 r/min
- Voltage: 220V / 380V
- Temperature: < 80°C to 100°C
