Fluoroplastic Chemical Centrifugal Pump
This fluoroplastic chemical pump is designed with a fluoroplastic alloy for good corrosion resistance against chemical liquids such as acid, alkali, and salt. The horizontal single-stage end suction centrifugal pump offers low cost and high efficiency.
Technical Specifications
Product Overview

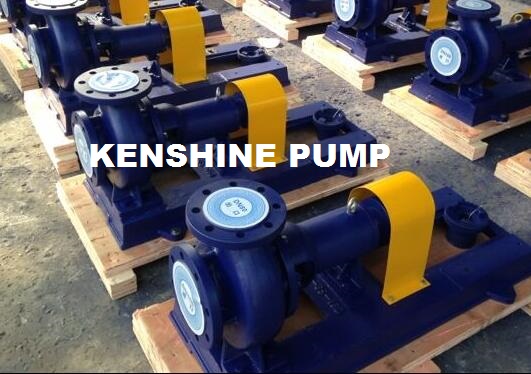

IHF Series Chemical Centrifugal Pump

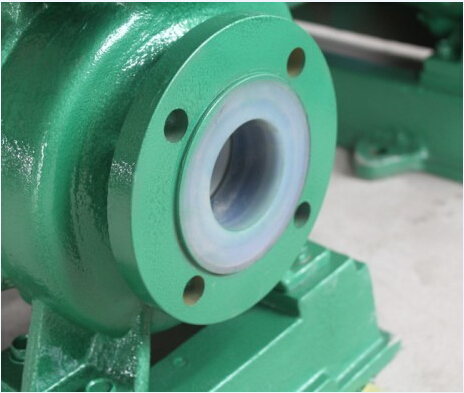

The IHF series is a single-stage, single-suction centrifugal pump engineered specifically for the chemical industry, adhering to international non-metal pump design standards. Featuring a robust metal shell with FEP (F-46) lining, this pump offers exceptional resistance to corrosion, high temperatures, and aging while maintaining high mechanical strength. It is an ideal solution for transporting corrosive media such as acids, alkalis, strong oxidants, and organic solvents in demanding industrial environments.
Performance Metrics
Capacity Range
Head Range
Technical Specifications
Rotary Speeds
- 1,450
- 2,900
- Operating Temperature Range
- -85℃ to 200℃
Construction & Materials
Material Composition
| Component | Material Details |
|---|---|
| Pump Body | Metal shell with FEP (F-46) lining |
| Impeller/Cover | Metal with fluoroplastic lining |
| Seal Ring | Silicone carbide |
| Rotary Ring | Gland packing Teflon or silicone carbide |
Application Suitability
- Suitable Industries
- ChemicalPetroleumPharmacyElectricityFoodEnvironment ProtectionMetallurgyMiningPaper Making
