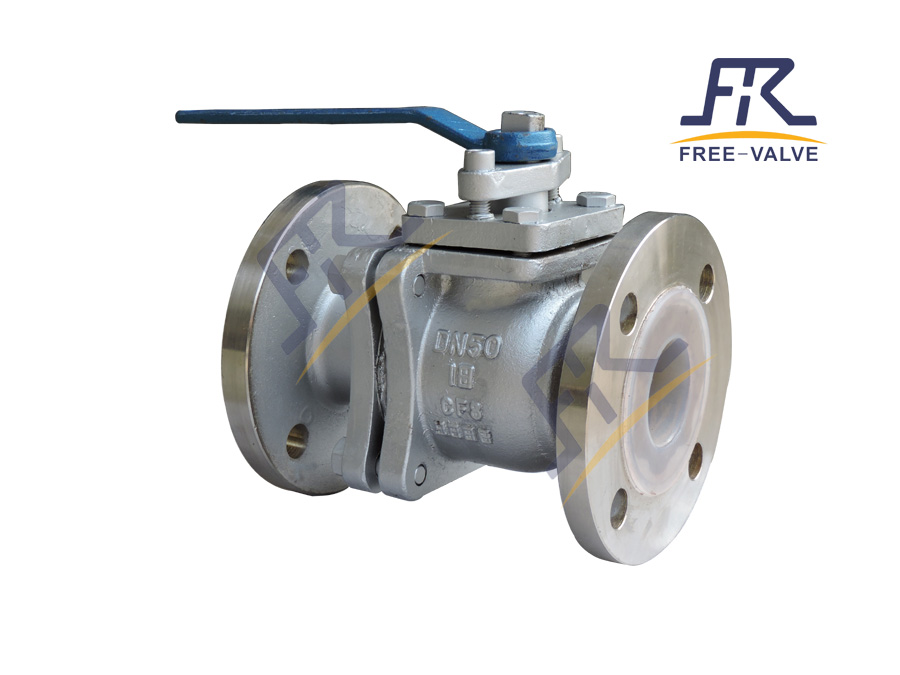

Fluorine Lined Ball Valve with PTFE/F46
This fluorine lining ball valve is lined with PTFE/F46 for resistance to corrosion and aging, offering reliable sealing for corrosive mediums. The valve features zero leakage and superior sealing performance due to its fluorine plastic liner and stem-integrated ball design.
Technical Specifications
Product Overview
Fluorine Lined Ball Valve
This high-performance ball valve features an advanced fluorine lining, providing exceptional resistance to corrosion, aging, and chemical degradation. Designed with an integrated ball and stem structure, it ensures zero leakage and superior sealing performance even in demanding industrial environments. The full-bore design minimizes fluid resistance, making it suitable for both on-off and control applications in chemical, petroleum, and power industries.
Technical Specifications
Lining Materials
PTFEPFAFEP
Body Materials
- WCB
- CF8
- CF8M
Operating Modes
- Manual lever
- Worm gear
- Electric
- Pneumatic
- Size Range
- DN15 to DN350
- Pressure Range
- Class 150PN6PN10
- Connection Type
- Flange
Compliance & Standards
Industry Standards
| Standard Type | Reference |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, ASME B16.10 |
Key Features
Performance Highlights
0 Zero
Leakage Rate
100 Full Bore
Port Design
