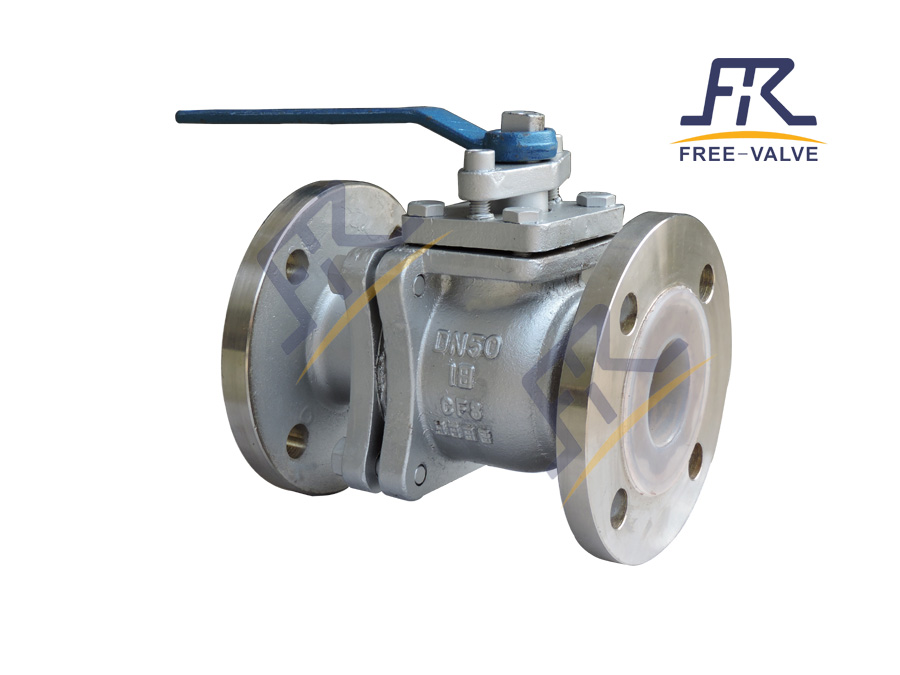

Fluorine Lined Ball Valve
This fluorine lining ball valve features corrosion and aging resistance with PTFE/F46 lining, providing reliable sealing for corrosive media like acid and alkali. The valve integrates a fluorine plastic liner with a new ball and stem structure, offering the advantages of a general ball valve with zero leakage.
Technical Specifications
Product Overview
Corrosion-Resistant Industrial Valve
This fluorine-lined ball valve is engineered for superior performance in handling corrosive media such as acids and alkalis. Featuring a robust, zero-leakage design with an integrated ball and stem, it ensures reliable sealing and high durability. It is an ideal solution for critical applications in the chemical, petroleum, and metallurgy industries.
Technical Specifications
Lining Materials
PTFEPFAFEP
Body Materials
- WCB
- CF8
- CF8M
Operating Modes
- Manual lever
- Worn gear
- Electric
- Pneumatic
- Size Range
- DN15 - DN350
- Pressure Ratings
- Class 150PN6PN10
- Connection Type
- Flange
Compliance & Standards
Design Standards
| Standard Type | Reference |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, ASME B16.10 |
Key Features
Performance Highlights
0 Zero
Leakage Rate
100 Minimal
Flow Resistance
