CL/L Series Flexible Gear Couplings
The CL/L series flexible coupling is a high-performance gear coupling designed to connect two shafts for efficient torque transmission while accommodating angular, parallel, and axial misalignment. Featuring a simple and lightweight structure, these couplings are both economical and practical for a wide range of industrial applications. They are designed for easy installation and removal without the need for lubrication, ensuring low maintenance and reduced downtime.
Key Features
- Key Features
- No Lubrication RequiredEasy RemovalLightweight DesignOil ResistantGrease ResistantMisalignment Accommodation
Performance Metrics
Maximum Rotational Speed
6,000 RPM
Max Speed (L-035)
2,000 RPM
Max Speed (CL-225)
Technical Specifications

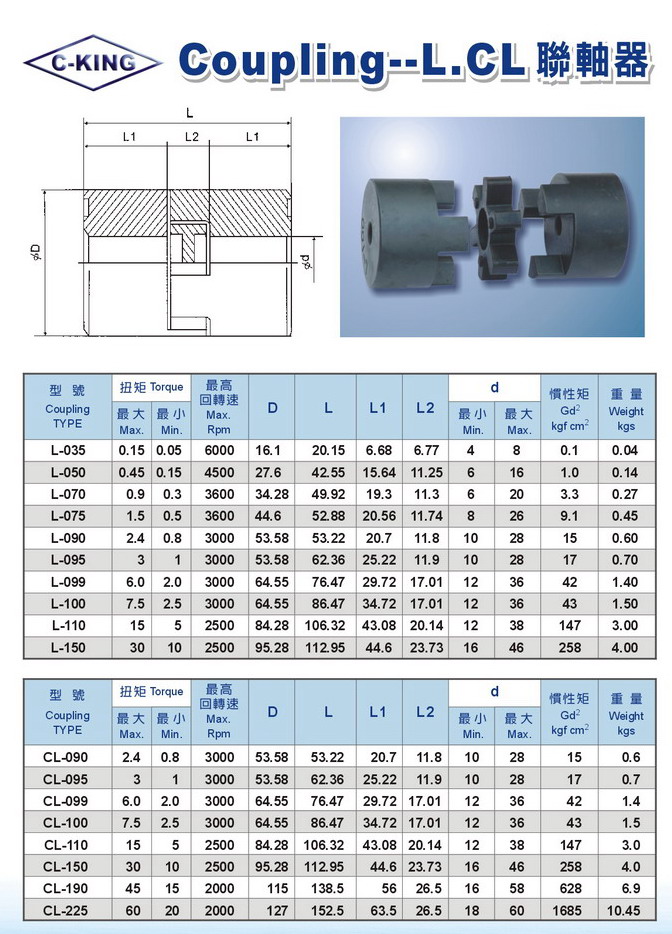

L-Series Specifications Table
| Type | Max Torque (kgf cm) | Max RPM | Bore Range d (mm) | Weight (kg) |
|---|---|---|---|---|
| L-035 | 0.15 | 6,000 | 4 - 8 | 0.04 |
| L-050 | 0.45 | 4,500 | 6 - 16 | 0.14 |
| L-070 | 0.9 | 3,600 | 6 - 20 | 0.27 |
| L-075 | 1.5 | 3,600 | 8 - 26 | 0.45 |
| L-090 | 2.4 | 3,000 | 10 - 28 | 0.6 |
| L-110 | 15 | 2,500 | 12 - 38 | 3 |
| L-150 | 30 | 2,500 | 16 - 46 | 4 |
CL-Series Specifications Table
| Type | Max Torque (kgf cm) | Max RPM | Bore Range d (mm) | Weight (kg) |
|---|---|---|---|---|
| CL-090 | 2.4 | 3,000 | 10 - 28 | 0.6 |
| CL-100 | 7.5 | 3,000 | 12 - 36 | 1.5 |
| CL-150 | 30 | 2,500 | 16 - 46 | 4 |
| CL-190 | 45 | 2,000 | 16 - 58 | 6.9 |
| CL-225 | 60 | 2,000 | 18 - 60 | 10.45 |
Application
Suitable Equipment
- Pumps
- Fans
- Compressors
- Rotating Industrial Equipment
- Power Transmission Systems
Physical Properties
- Coupling Structure
- Internal and external gear meshing
- Maintenance
- No
