Flexible Shaft Cable

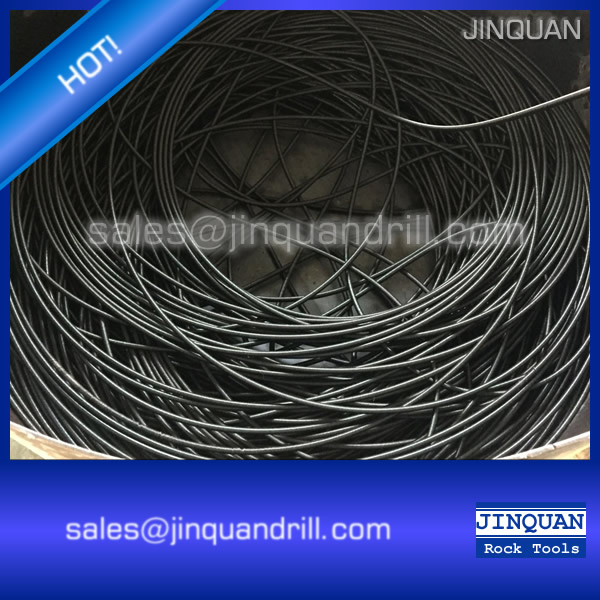

Flexible shaft cables are constructed with high-carbon steel and multiple layers for enhanced durability. These cables are suitable for transmitting rotational motion in hard-to-reach or complex configurations.
Technical Specifications
Overview
High-Performance Flexible Shaft Solutions
This premium variety of flexible shaft cables is engineered for high-durability power transmission in demanding industrial environments. Constructed from high-carbon steel, these shafts provide exceptional flexibility and precision for machine tools and rotary equipment. Their multi-layered design ensures smooth operation and reliable torque transmission even in complex geometries or confined spaces.

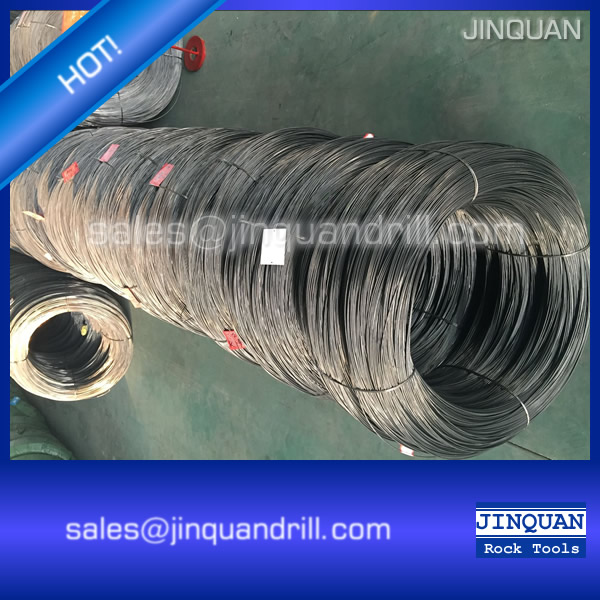

Material & Construction

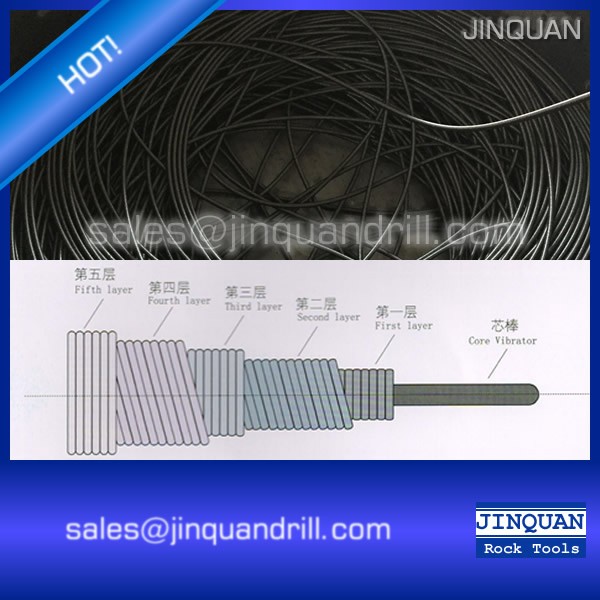

Internal Structure
- Central Core Vibrator (芯棒)
- First Layer (第一层)
- Second Layer (第二层)
- Third Layer (第三层)
- Fourth Layer (第四层)
- Fifth Layer (第五层)
- Material Grade
- 60# High-Carbon Steel70# High-Carbon Steel
Technical Specifications
Technical Parameters by Diameter
| Diameter (mm) | Tolerance (mm) | Layers | Torsion (10N.cm) | Weight (kg/100m) |
|---|---|---|---|---|
| 6 | - | 4/5/7 | 5.8 | 16.2 |
| 6.5 | +0.00 | 4/5/7 | 6.2 | 18.7 |
| 8 | -0.10 | 4/5/7 | 10 | 28.8 |
| 9 | - | 4/5/7 | TBD | TBD |
Available Layer Configurations
4 Layers5 Layers7 Layers
Applications
Primary Applications
- Machine tools and industrial equipment
- Rotary tools and dental equipment
- Remote control mechanisms
- Precision machinery and robotics
- Power transmission in confined spaces
Performance Features
Performance Benefits
- High torque transmission capability
- Handles angular misalignment effectively
- Durable construction for long service life
- Smooth operation in complex geometries
