Technical Specifications
Product Overview

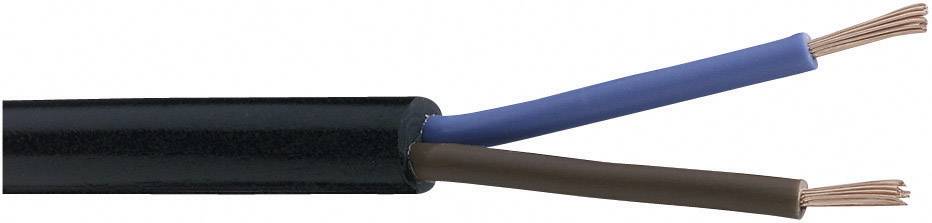

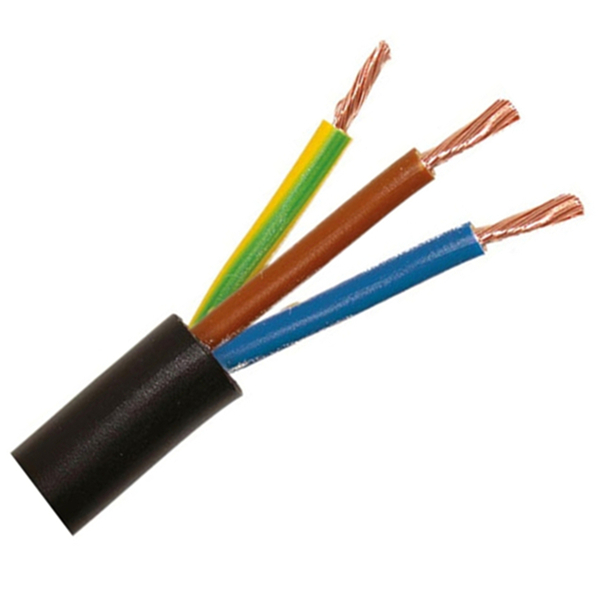

H05VV-F 3183Y Flexible Cable
The H05VV-F 3183Y (RVV) is a high-quality, flexible electric cable engineered for domestic and light commercial applications. Featuring bare copper conductors and robust PVC insulation, it offers excellent flexibility and durability for indoor use in dry environments. This cable is ideal for connecting household appliances, lighting fixtures, and office equipment, ensuring reliable power transmission and protection against mechanical stress.
Technical Specifications
Voltage Rating
300 V
Lower Voltage
500 V
Upper Voltage
- Conductor Material
- Plain Annealed Copper Wires, Strand Class 5 Flexible

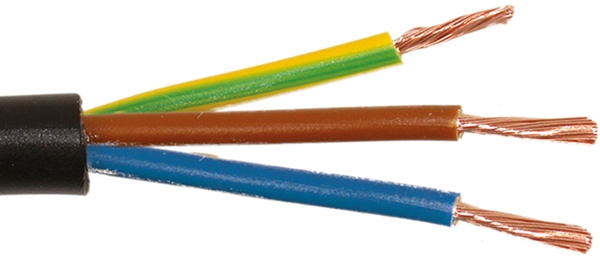

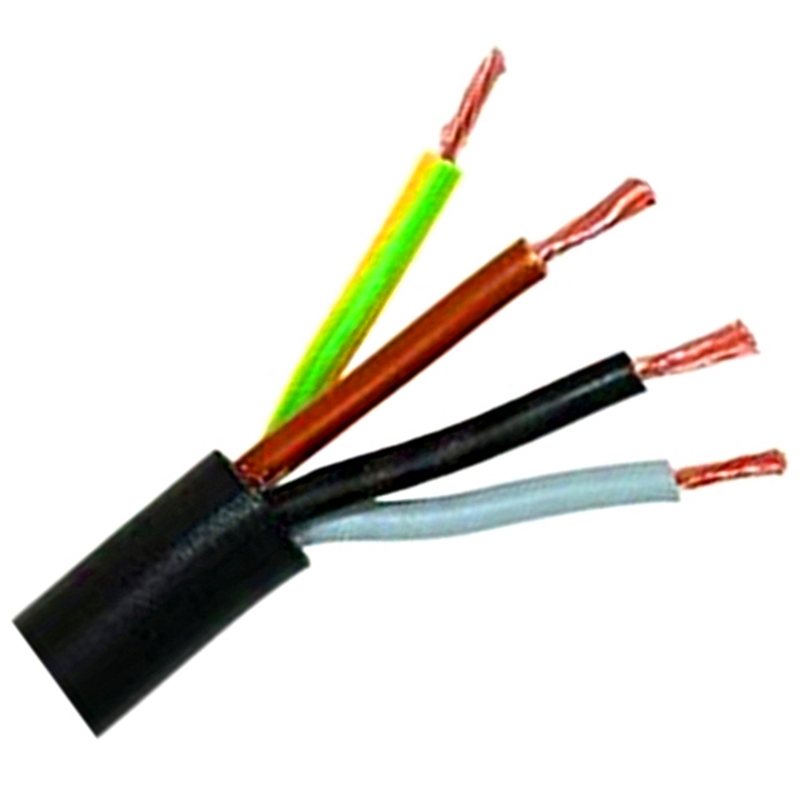

- Available Core Counts
- 2C3C4C5C
- Product Size Range
- 0.50 - 6.0 mm²
- Min. Bending Radius
- 6 x Outer Diameter
Materials & Colors

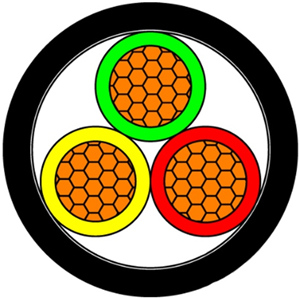

Insulation Colors
BrownBlueBlackWhiteGreyYellow/Green
Sheath Colors
BlackWhite
- Insulation Material
- Soft PVC
- Sheath Material
- Soft PVC
Compliance & Environment
Production Standards
- IEC 60227
- BS 6004
- GB/T 5023-2008
- JB/T 8734-2016
- Working Temperature
- -15°C to +70°C (Customizable to 90°C or 105°C)
Logistics
Packaging
- 100 meters per roll
- Plastic reel
- Wooden pallet
- Wooden drum
- Typical Delivery
- 5-7 working days after deposit
