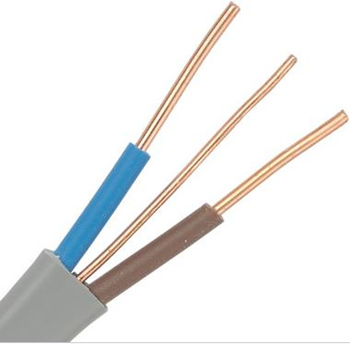

Flat Twin and Earth Electrical Wire
This flat twin and earth electrical wire is designed for fixed installations. It features PVC insulation and sheathing with plain annealed copper conductors.
Technical Specifications
Overview

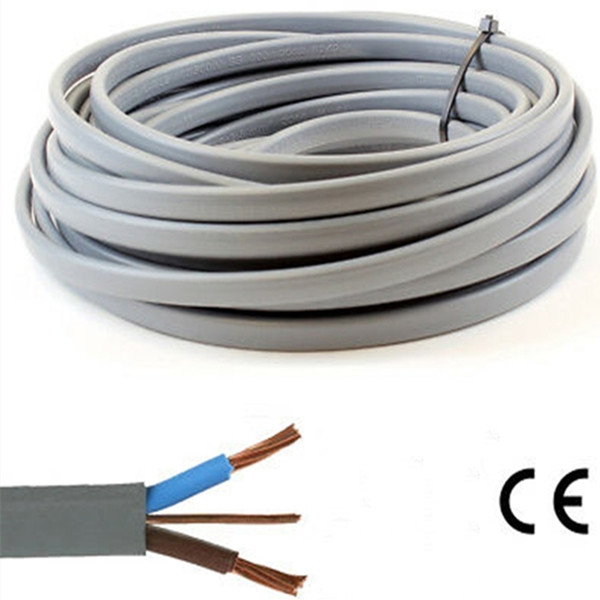

BS6004 6242Y Flat Twin and Earth Cable
This BS6004 6242Y Flat Twin and Earth (BVVB) cable is a high-quality solution for domestic and light industrial wiring. Designed for fixed installations in dry or damp premises, it can be clipped directly to surfaces, laid in trays, or housed in conduit where mechanical protection is required. Its flat profile and PVC construction ensure ease of installation for power and lighting circuits.
Technical Specifications
Voltage Rating
300 V
U0
500 V
U
- Operating Temperature
- -5°C to +70°C
- Production Standards
- BS 6004BS 6004 Table 4

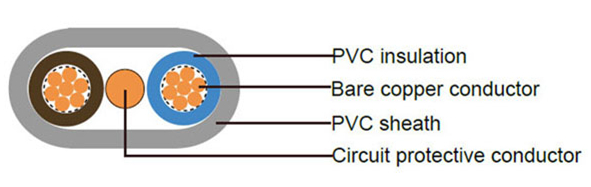

Construction Details
Conductor Class
- Solid Class 1 (1.0-2.5 mm2)
- Stranded Class 2 (4-16 mm2)
Core Colors
BrownBlueBare Earth
Sheath Characteristics
- Material: General PVC
- Color: Grey (Standard), Black, White
- Shape: Flat (Non-circular)
- Conductor Material
- Plain annealed copper wires
- Insulation Material
- Polyvinyl Chloride (PVC)
- Core Configuration
- 2 Cores + Bare Earth (Circuit Protective Conductor)
Application & Installation
Recommended Installation
- Fixed installations in dry or damp premises
- Clipped to surface
- On cable trays
- In free air (low mechanical risk)
- In conduit or trunking (for mechanical protection)
Comparison Data
Standard Comparison (BS vs IEC vs AS/NZS)
| Feature | BS 6004 (This Product) | IEC 60227 | AS/NZS 5000.2 |
|---|---|---|---|
| Sheath Color | Grey | White | White |
| Voltage Rate | 300/500V | 300/500V | 450/750V |
| Temp Rating | -5°C to +70°C | -5°C to +70°C | -5°C to +90°C |
| Core Colors | Brown, Blue, Bare | Red, Black, Y/G | Red, Black, Y/G |
