Flat Twin and Earth Electrical Cable AS/NZS 5000.2
This flat twin and earth (TPS) electrical cable meets AS/NZS 5000.2 standards. It is designed with plain annealed copper wires, V-90 PVC insulation, and a 3V-90 easy-tear PVC sheath.
Technical Specifications
Product Overview

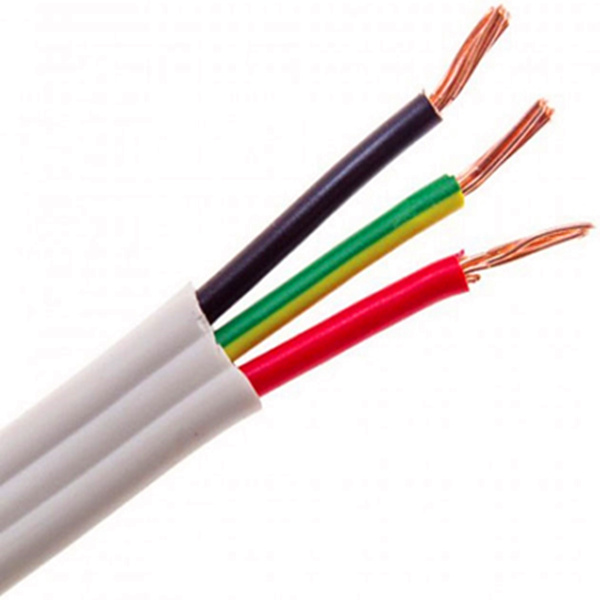

Flat TPS Electrical Cable
This Flat TPS (Thermoplastic Sheathed) electrical cable is manufactured to meet the AS/NZS 5000.2 standard, ensuring safety and reliability for professional electrical installations. Designed with V-90 PVC insulation and a 3V-90 easy-tear PVC sheath, it offers both durability and ease of installation in building wiring projects. It is widely utilized in residential and commercial environments for fixed wiring, including connections for household appliances.
Technical Specifications
- Production Standard
- AS/NZS 5000.2
- Voltage Rate
- 450/750V (U0/U)
- Conductor Material
- Plain annealed copper
- Conductor Type
- Solid Class 1Strand Class 2
- Insulation Material
- V-90 PVC
- Sheath Material
- 3V-90 Easy-tear PVC
- Temperature Rating
- -5°C to +90°C
Configuration
Available Core Numbers
- 2C
- 3C
- 2C+E
- 3C+E
Insulation Colors
RedBlackYellow/Green (Earth)
- Product Size Range
- 1.0 - 16 mm²
Comparison
Standard Comparison Table
| Feature | AS/NZS 5000.2 | IEC 60227 | BS 6004 |
|---|---|---|---|
| Insulation | V-90 PVC | General PVC | General PVC |
| Sheath | 3V-90 (Easy-tear) | General PVC | General PVC |
| Voltage | 450/750V | 300/500V | 300/500V |
| Temp Rating | -5 to +90°C | -5 to +70°C | -5 to +70°C |
