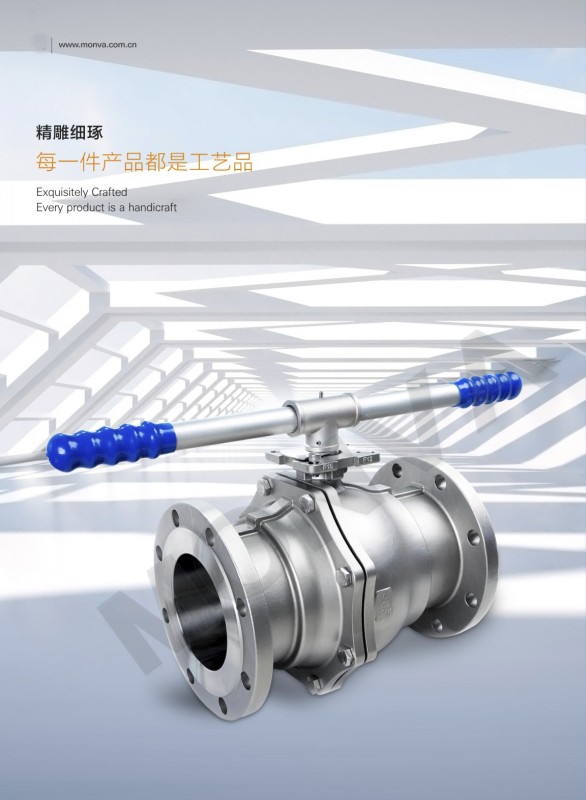

Flanged Ball Valve with Mounting Pad
This flanged ball valve features a mounting pad for easy actuation and is designed to meet PN16 and PN40 pressure ratings. It provides reliable shutoff and control of fluid flow in industrial applications.
Technical Specifications
Overview
Industrial Flanged Ball Valve

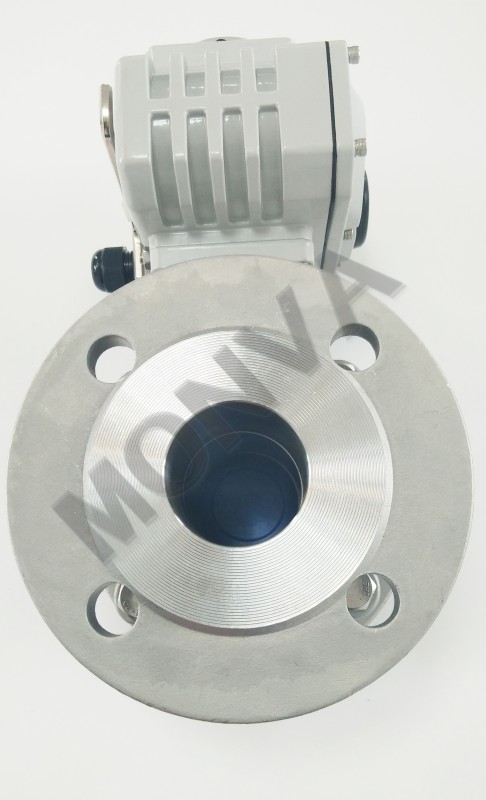

The MV-24D is a robust 2-piece flanged ball valve engineered for reliable flow control in demanding industrial environments. Featuring an integrated ISO5211 mounting pad, this valve is designed for easy actuation and automation integration. With a fire-safe design and high-grade construction materials, it ensures secure, leak-proof performance across a wide range of pressure and temperature conditions.
Technical Specifications
Working Temperature
-25 ℃
Min Temp
180 ℃
Max Temp
- Pressure Rating
- PN16 to PN40
- Body Materials
- CF8MCF8CF3MWCB
Design & Standards
Face to Face Standard
| Standard | Size Range |
|---|---|
| EN558 Series 27 | N/A |
| DIN3202 F4 | DN15 - DN100 |
| DIN3202 F5 | DN125 - DN200 |
Mounting Pad Standard
ISO5211
Design Features
- 2-Piece Body
- Investment casting for body and cap
- Fire-safe design
- Flange Standard
- DIN EN1092-1
