Technical Specifications
Product Overview
Flame Retardant Flexible Cable
This high-performance flexible cable is engineered for power and control applications where fire safety is a critical requirement. It features a robust multi-layered construction, including copper conductors and specialized insulation, designed to withstand demanding environmental conditions. With versatile installation options and excellent thermal ratings, this cable provides a reliable solution for various industrial and communication systems.
Technical Ratings
- Rated Voltage (U0/U)
- 450/750V0.6/1kV
- Max Operating Temperature
- 70 °C
- Max Short Circuit Temp (5s)
- 160 °C
Installation Data
Minimum Bending Radius
| Cable Type | Radius Multiplier |
|---|---|
| Non-armored flame-retardant | 6x outer diameter |
| Flame-resistant | 12x outer diameter |
| Armored flame-retardant | 20x outer diameter |
Laying Methods
- Aerial
- Piped
- Cable trench
- Buried
- Minimum Laying Temperature
- 0 °C
Construction Details

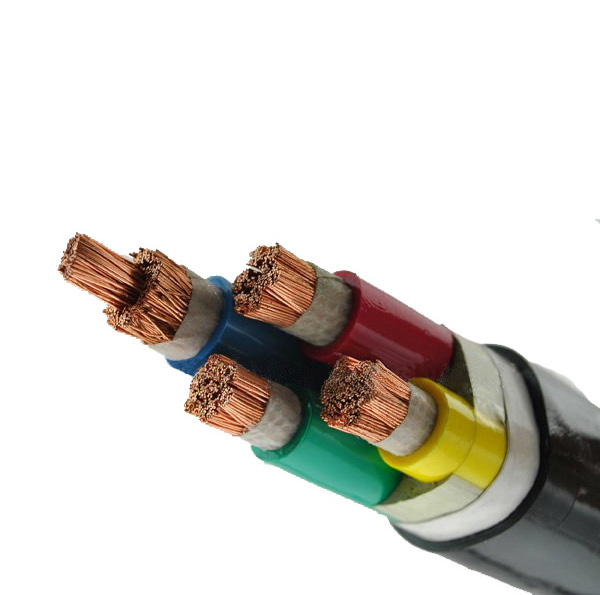

Cable Composition
- Copper Conductors
- Filling
- PVC Insulation
- PVC Wrapping Isolation
- Steel Tape Armor
- PVC Sheath
