Fine Sand Recovery System
The fine sand recovery system is an environmentally friendly machine designed for efficient recovery of fine sand particles. It is widely used in purification of fine sand mud, sand and gravel aggregates recycling, and artificial sand production.
Technical Specifications
Product Overview

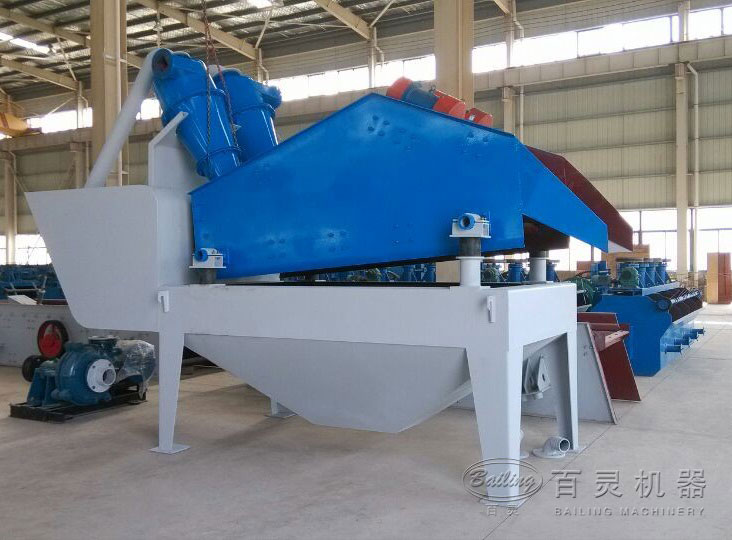

Fine Sand Recovery System
This fine sand recycling machine is an environmentally friendly solution designed to recover fine sand particles from wastewater streams. It is widely utilized in hydropower systems, glass raw material processing, and artificial sand production lines to minimize material loss. By integrating advanced hydrocyclone and dewatering screen technology, the system effectively separates fine sand from liquid, achieving up to 95% recovery of fine grain materials.
Key Features
- System Benefits
- Environment-friendlyHigh recovery rateAnti-blocking screenPolyurethane screen clothReduced sand loss
Performance Highlights
Efficiency Metrics
95 %
Max Fine Grain Recovery
10 %
Max Sand Loss Reduction
Technical Specifications
Technical Data Table
| Model | Capacity (m3/h) | Pump Power (kw) | Screen Area (m2) | Weight (kg) |
|---|---|---|---|---|
| BL-06-300 | 30-80 | 11 | 1.35 | 3,945 |
| BL-08-300 | 40-100 | 15 | 1.8 | 4,200 |
| BL-10-350 | 70-130 | 18.5 | .25 | 4,900 |
| BL-12-550 | 100-220 | 22 | 3.6 | 7,515 |
| BL-12-650 | 120-272 | 30 | 3.6 | 7,833 |
| BL-14-750 | 180-350 | 37 | 4.2 | 9,610 |
| BL-14-750 II | 230-430 | 45 | 5.25 | 11,850 |
| BL-16-900 | 250-500 | 55 | 5.25 | 14,300 |
| BL-16-650 | 300-500 | 55 | 6.00 | 16,700 |
| BL-18-750 | 400-600 | 75 | 6.75 | 19,680 |
