Filter Regulator Valve with Mesh Filters
This filter regulator valve is designed for pipelines carrying water and non-corrosive liquids at temperatures below 80℃. It reduces the medium's pressure while maintaining a consistent level to meet operational requirements.
Technical Specifications
Product Overview
Integrated Filtration and Pressure Regulation
This filter regulator valve is designed to efficiently manage fluid systems by combining filtration and pressure regulation in one unit. It features dual mesh filters at the inlet to block impurities, protecting downstream components and ensuring consistent pressure. The durable, maintainable design allows for easy cleaning and recycling of the filters, promoting long service life in water and non-corrosive liquid applications.

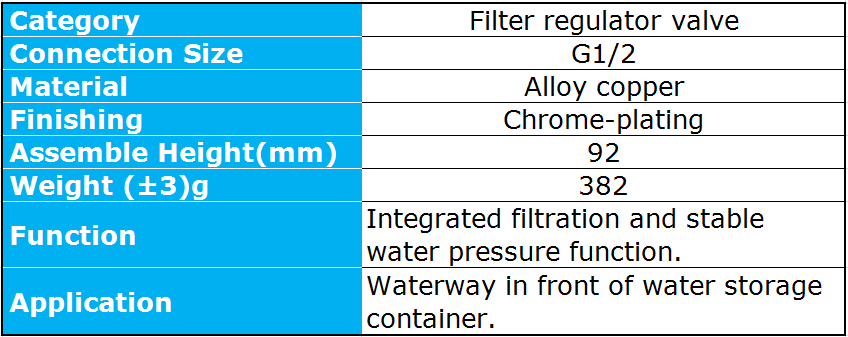

Technical Specifications
- Connection Size
- G1/2
- Material
- Alloy copper
- Finishing
- Chrome-plated
- Assemble Height
- 92 mm
- Weight
- 382 g
Performance & Application
Maintenance Capabilities
- Disassemble and replace filters at will
- Open valve cover to remove impurities
- Recyclable filter design for long life
- Included Mesh Filters
- 25 mesh30 mesh
- Max Operating Temperature
- 80 °C
- Recommended Use
- Waterway in front of water storage container
