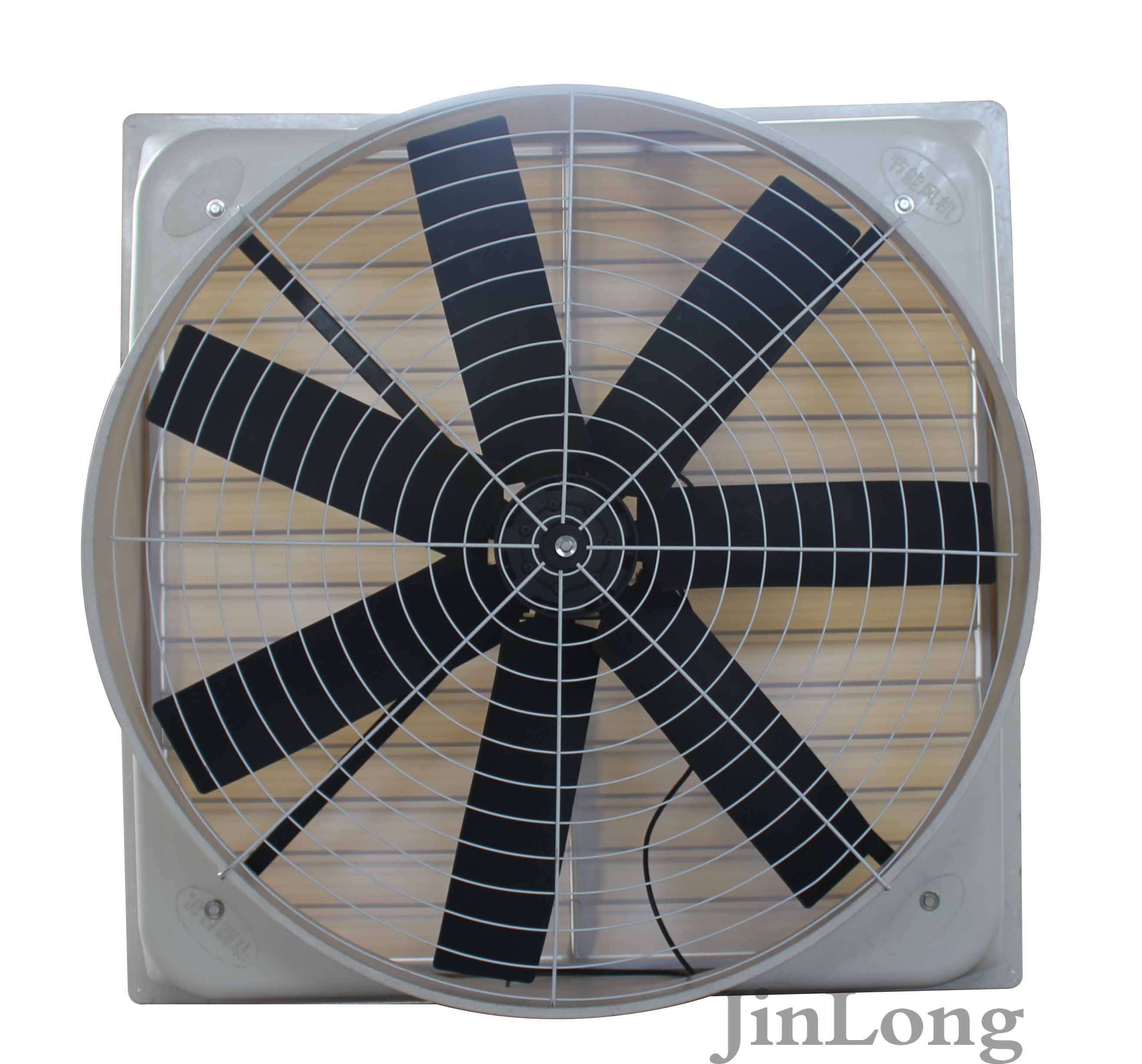

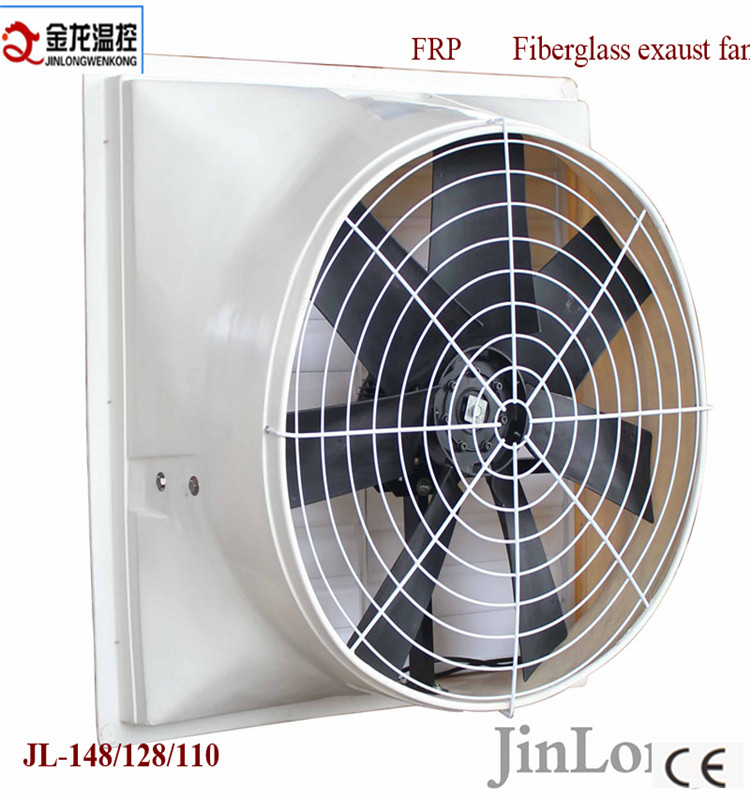

Fiberglass Industrial Exhaust Fan
This industrial fiberglass exhaust fan is designed for efficient ventilation and air extraction. It features a durable FRP (Fiberglass Reinforced Polymer) construction for corrosion resistance and long-lasting performance.
Technical Specifications
Overview
High-Performance Industrial Ventilation
This industrial fiberglass exhaust fan is engineered for heavy-duty ventilation requirements in demanding environments, including textile workshops, greenhouses, and large-scale agricultural facilities. Constructed with durable Fiberglass Reinforced Polymer (FRP), the unit offers exceptional corrosion resistance and longevity. It features a high-efficiency motor and a 6-paddle propeller design, ensuring reliable, high-volume air movement with minimal maintenance.
Key Features
Key Features
- Durable FRP (Fiberglass Reinforced Polymer) construction
- 6-paddle propeller blade design
- Totally enclosed, high-efficiency maintenance-free motor
- Heavy-duty casting pulley and hub
- Shutter with PVC extrusion frame and stainless steel reinforced corners
- 100% quality control motor testing
Technical Specifications
Model Performance Comparison
| Item No. | Airflow (CMH) | Power (kW) | Max Pressure (Pa) | Noise (db) |
|---|---|---|---|---|
| JLF-180 | 18,000 | 1.1 | 180 | ≤68 |
| JLF-220 | 22,000 | 1.5 | 200 | ≤70 |
| JLF-250 | 25,000 | 2.2 | 330 | ≤75 |
| JLF-300 | 30,000 | 3 | 350 | ≤78 |
- Power Supply
- 380V/220V
Applications
- Suitable Applications
- Textile WorkshopsGreenhousesLivestock FarmsFood ProcessingWarehousingCommercial Kitchens
