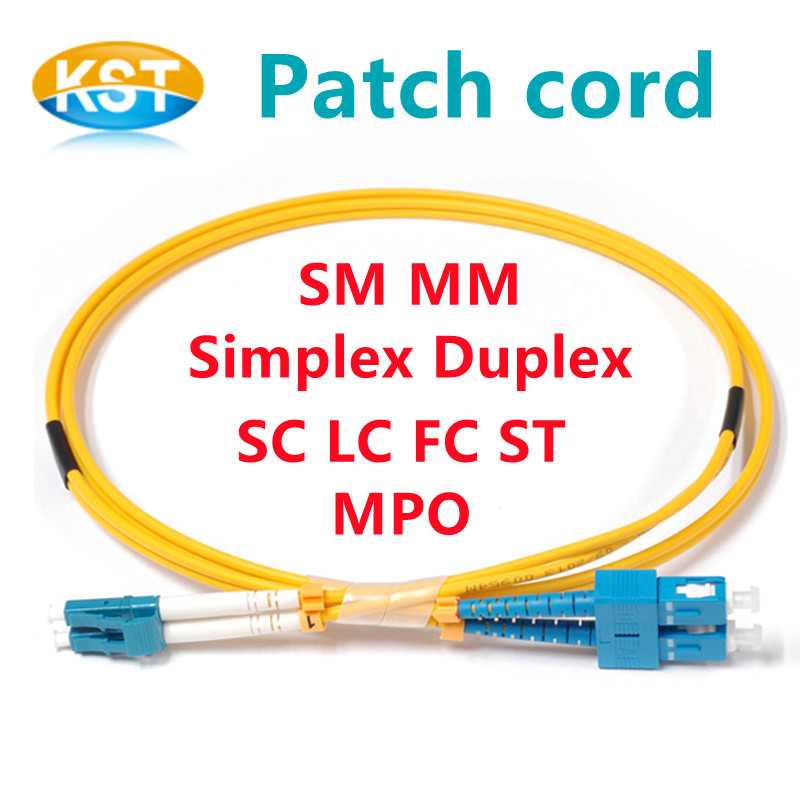

Fiber Optic Patch Cord SM MM Duplex Simplex Jumper SC LC FC ST MPO Connector
These fiber optic patch cords are designed for reliable data transmission. They support both Single-Mode (SM) and Multi-Mode (MM) fiber types with various connector options.
Technical Specifications
Product Overview
High-Performance Fiber Optic Patch Cords
These fiber optic patch cords are engineered for reliable data transmission in telecommunications, data centers, and high-bandwidth networking environments. Available in both Single-Mode (SM) and Multi-Mode (MM) configurations, they support a wide array of connector types including SC, LC, FC, ST, and MPO to suit diverse infrastructure needs. Designed with durability in mind, they feature multiple jacket material options and various cable structures to ensure optimal signal integrity and minimal insertion loss.
Technical Specifications
Structure Options
- Simplex
- Duplex
- Bunch type
- Ribbon type
Jacket Materials
- OFNR
- LSZH
- OFNP
Available Diameters
- 0.9mm
- 2.0mm
- 3.0mm

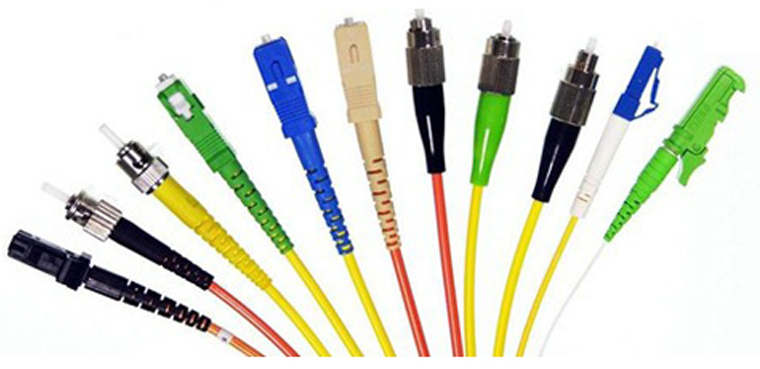

- Compatible Connectors
- SCLCFCSTMPOMUMT-RJESCONE2000
- Fiber Types
- Single-Mode (SM)Multi-Mode (MM)

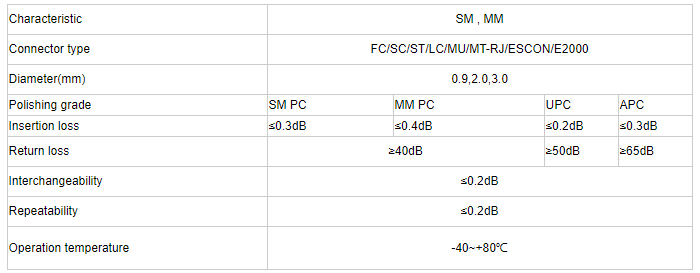

Performance Metrics
Performance Characteristics
| Parameter | SM PC | MM PC | UPC | APC |
|---|---|---|---|---|
| Insertion Loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return Loss | - | ≥40dB | ≥50dB | ≥65dB |
Operational Temperature
-40 °C
Min Temp
80 °C
Max Temp
