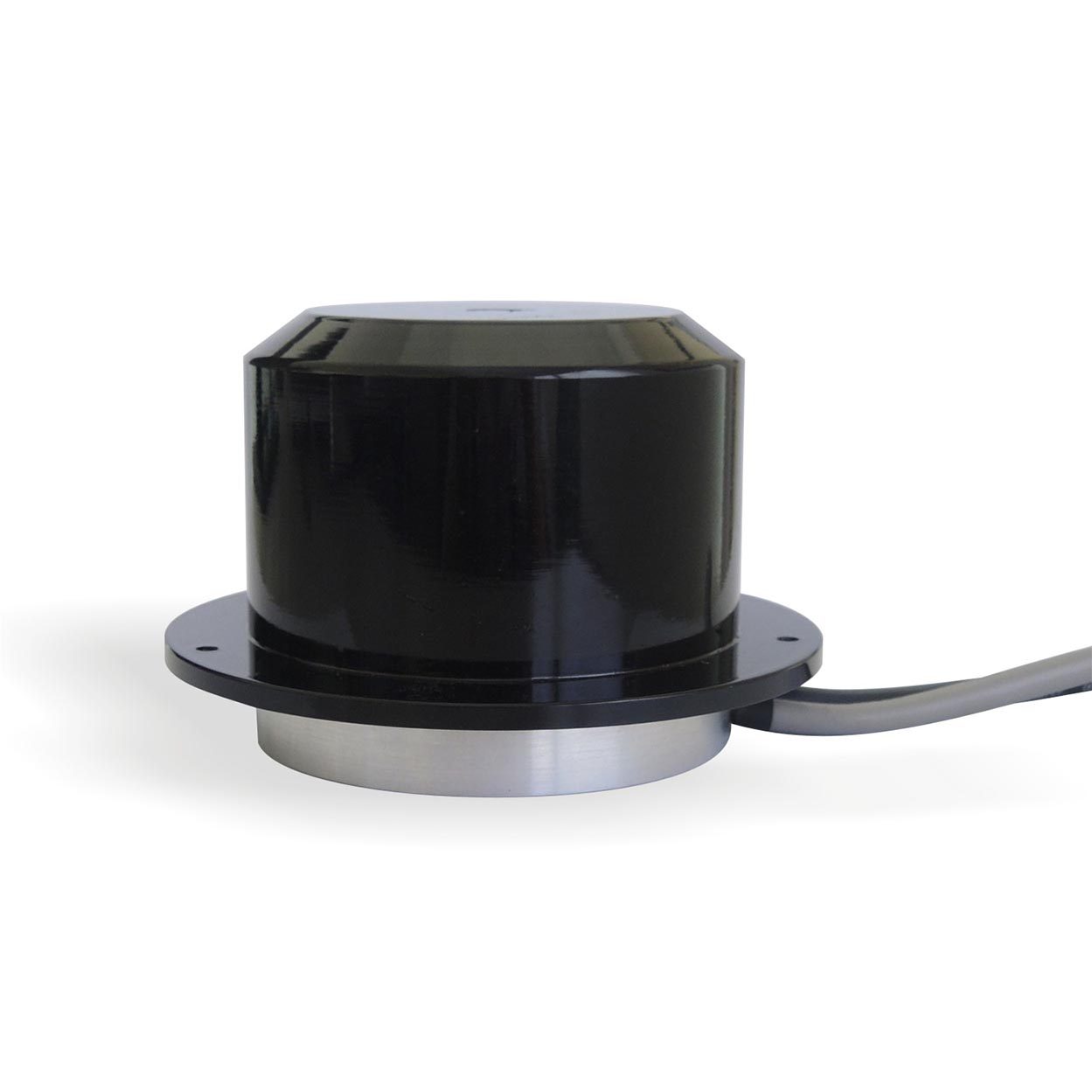

FFU Motor ECM102 Series
BLDC motors for FFU and impellers designed for HVAC applications offer high efficiency and quiet operation. Electronic protection ensures safe operation with over-current, over-load, and blocking protection.
Technical Specifications
Overview
High-Efficiency ECM102 Series
The ECM102 series is a high-performance, three-phase BLDC motor featuring an external rotor design, specifically engineered for Fan Filter Units (FFU) and HVAC applications. These motors are built for maintenance-free, quiet operation while delivering high efficiency to minimize operational costs. Equipped with integrated electronic protections such as over-current and over-load blocking, they ensure reliable performance in demanding cleanroom environments.
Technical Specifications
- Motor Type
- Three-phase BLDC, external rotor
- IP Class
- IP20
- Efficiency
- 80%
- Input Voltage
- 380VDC
- Certifications
- CECCC

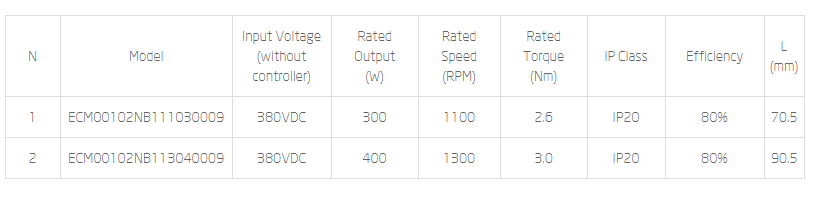

Performance Data
Model Performance Metrics
| Model | Output (W) | Speed (RPM) | Torque (Nm) | Length (mm) |
|---|---|---|---|---|
| ECM00102NB111030009 | 300 | 1,100 | 2.6 | 70.5 |
| ECM00102NB113040009 | 400 | 1,300 | 3 | 90.5 |
Features
Key Features
- Maintenance-free operation
- Quiet, low-noise performance
- Electronic protection (over-current, over-load, blocking)
- Flexible configuration (separate or integrated driver)
