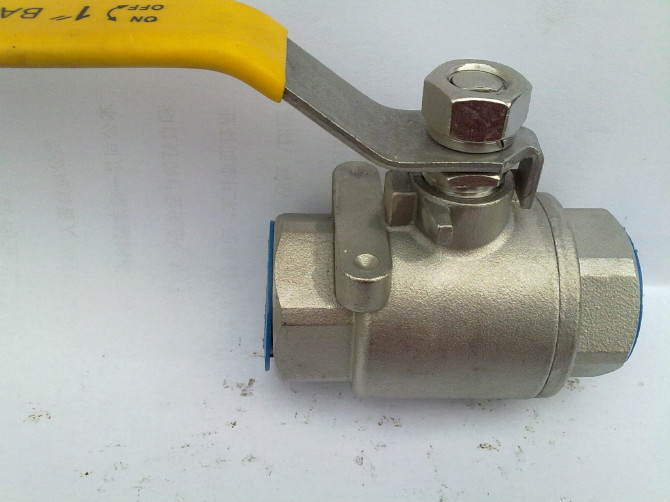

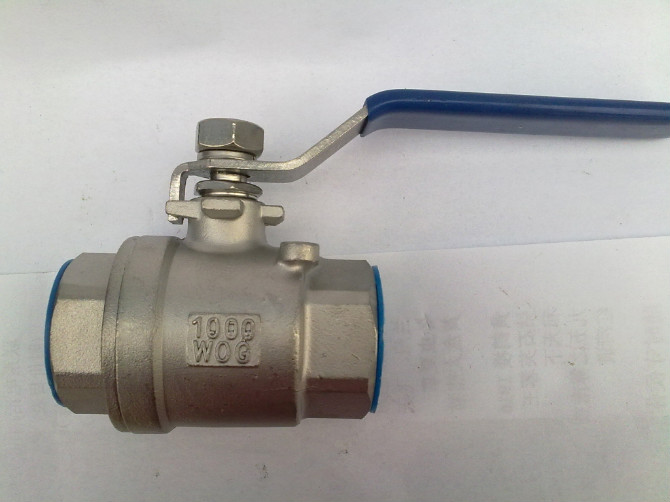

Female Threaded Two-Piece Stainless Steel Ball Valve
This two-piece ball valve is made of stainless steel and features female threaded ends. It provides a tight shut-off and is designed for easy operation in fluid control systems.
Technical Specifications
Product Overview
High-Performance Two-Piece Ball Valve
This two-piece stainless steel ball valve is engineered for durability and reliable flow control in demanding industrial environments. Featuring a robust investment casting construction, it offers excellent corrosion resistance and compatibility with various media including water, oil, gas, nitric acid, and acetic acid. Designed to meet stringent international standards, this valve ensures a tight shut-off and optimal performance across a wide temperature range.
Technical Specifications
Working Pressure
1,000 Psi
Working Pressure
64 PN
Pressure Rating
- Temperature Range
- -60°F to 450°F (-20°C to 232°C)
- Connection Formats
- GBSPTNPTBSPDIN 259/2999ISO 7/1-1982
Materials & Standards
Available Materials
- ASTM A351-CF8M (316)
- ASTM A351-CF8 (304)
- ASTM A216-WCB
- DIN 1.4308
- DIN 1.4408
Standards Compliance
| Category | Standard |
|---|---|
| Design & Making | ANSI B 16.34 |
| Inspection & Test | API 589 |
| Manufacturing Process | Investment Casting |
| Structure Length | GB/T 15188.3-94 |
Applications
Compatible Media
WOGNitric AcidAcetic Acid
