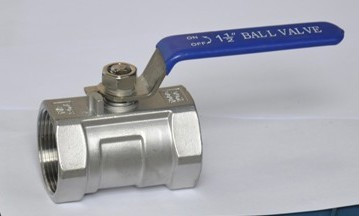

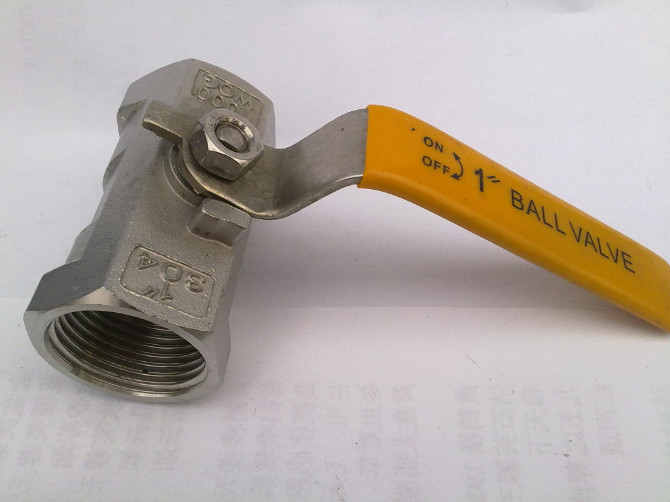

Female Threaded Stainless Steel Ball Valve
This stainless steel ball valve features female threaded ends for secure connections. It is designed for reliable flow control in various industrial applications.
Technical Specifications
Overview
High-Performance Stainless Steel Ball Valve
This one-piece stainless steel ball valve is engineered for reliable shutoff control in demanding industrial environments. Featuring a robust investment casting construction, it provides excellent corrosion resistance and a secure, leak-proof female threaded connection. Designed for versatility, it is suitable for water, oil, and gas (WOG) applications as well as more aggressive media like nitric and acetic acids.
Applicable Media
- Water, Oil, Gas (WOG)
- Nitric Acid
- Acetic Acid
Performance
Key Performance Metrics
1,000 Psi
Working Pressure
232 °C
Max Temperature
- Operating Temperature Range
- -60°F to 450°F (-20°C to 232°C)
Technical Standards
Compliance & Standards
- Design: ANSI B 16.34
- Inspection & Test: API 589
- Structure Length: GB/T 15188.3-94
- Manufacturing Process
- Investment Casting
Material Specifications
- Available Materials
- ASTM A351-CF8M (316)ASTM A351-CF8 (304)ASTM A216-WCBDIN 1.4308DIN 1.4408
Connection & Operation
Thread Standards
GBSPTNPTBSPDIN259/2999ISO7/1-1982
- Operation
- Manual Lever Handle with ON/OFF Indicators
