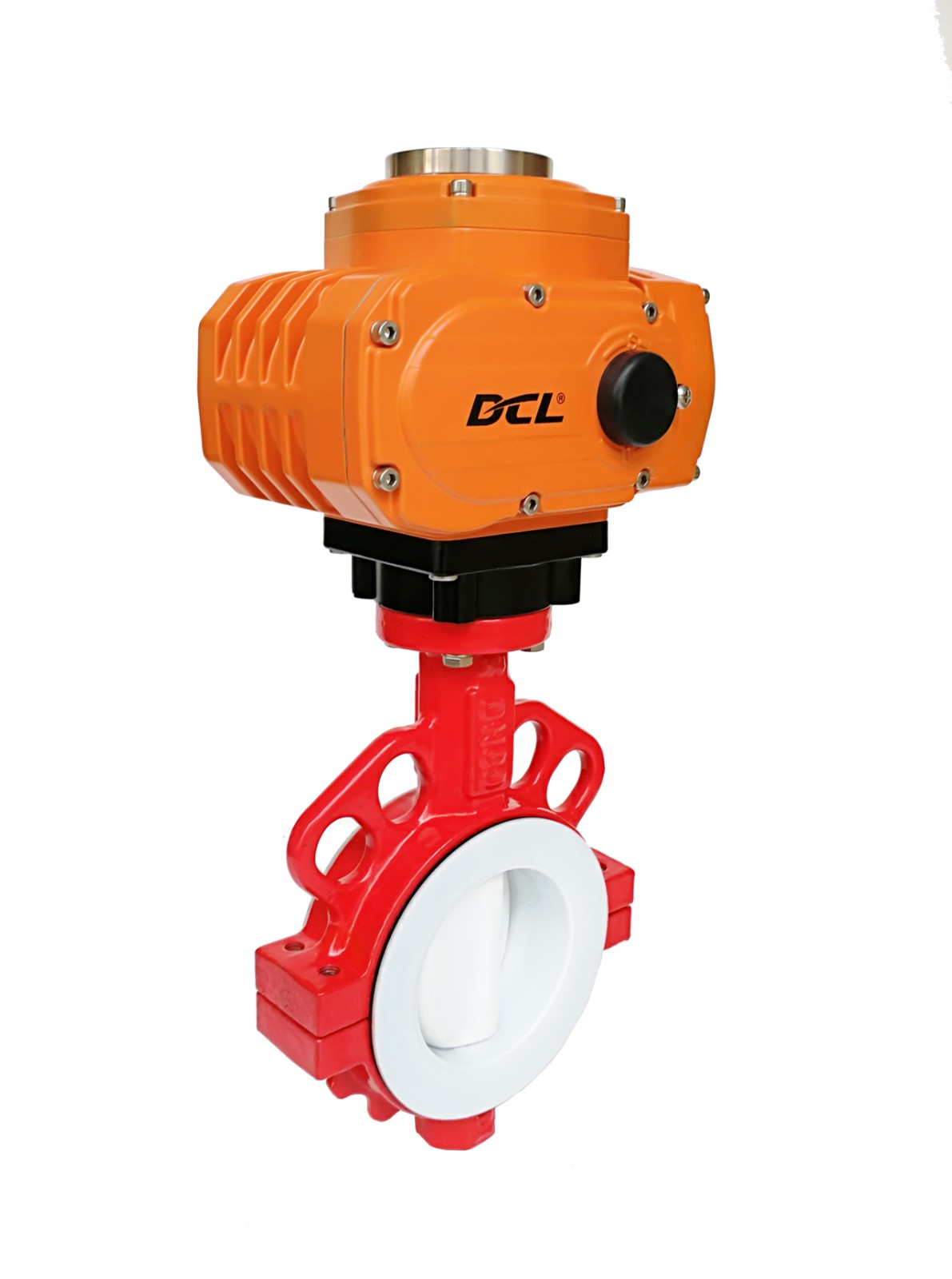

Explosion-Proof Electric Actuator with Overload Protection
This explosion-proof electric actuator features thermal overload protection and a PTC overheating protector. It is designed for reliable and safe operation in hazardous environments and precise valve automation.
Technical Specifications
Product Overview
Industrial Explosion-Proof Actuator
This electric actuator is precision-engineered for reliable operation in hazardous environments where explosive gases are present. It features an integrated PTC overheat protector and thermal switches to ensure external surface temperatures remain within strict safety thresholds. Built with a rugged, fully enclosed motor and self-locking all-metal gear train, it provides robust automation for critical valve control applications.
Technical Metrics
Operational Performance
400 Nm
Max Torque
90 degree
Turning Angle
9.5 kg
Total Weight
Electrical Specifications
Power Compatibility
| Voltage | Power | Rated Current |
|---|---|---|
| DC24V | 70W | 7.80A |
| AC110V | 90W | 1.12A |
| AC220V | 40W | 0.29A |
| AC380V | 90W | 0.64A |
Safety & Compliance
Explosion-Proof Rating
ExⅡBT4Gb
- Industry Standards
- ATEXCERoHS 3.0SIL 3CSAUL
- Ingress Protection
- IP67
Environmental Requirements
- Operating Temperature Range
- -20℃ to +60℃
