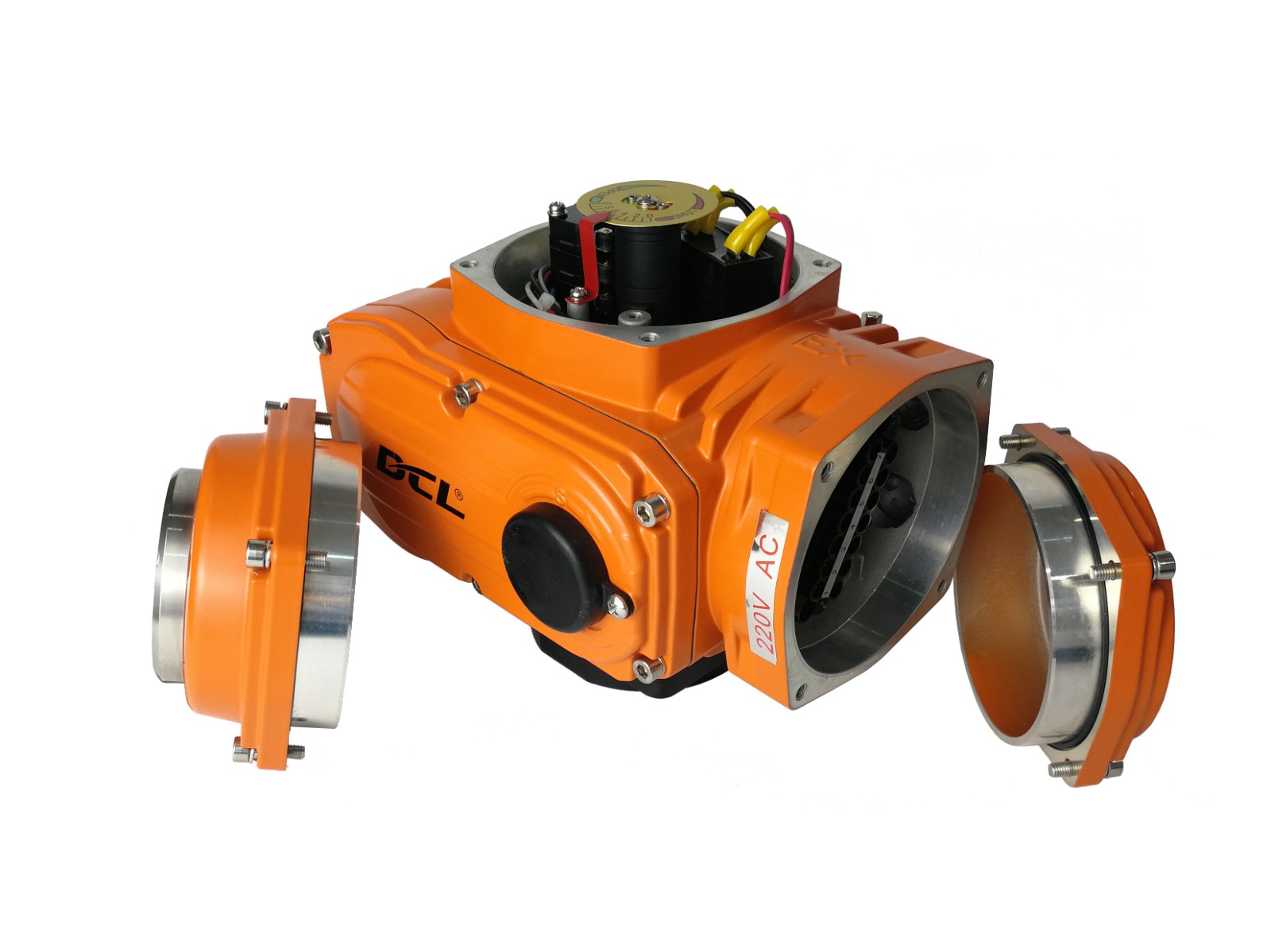

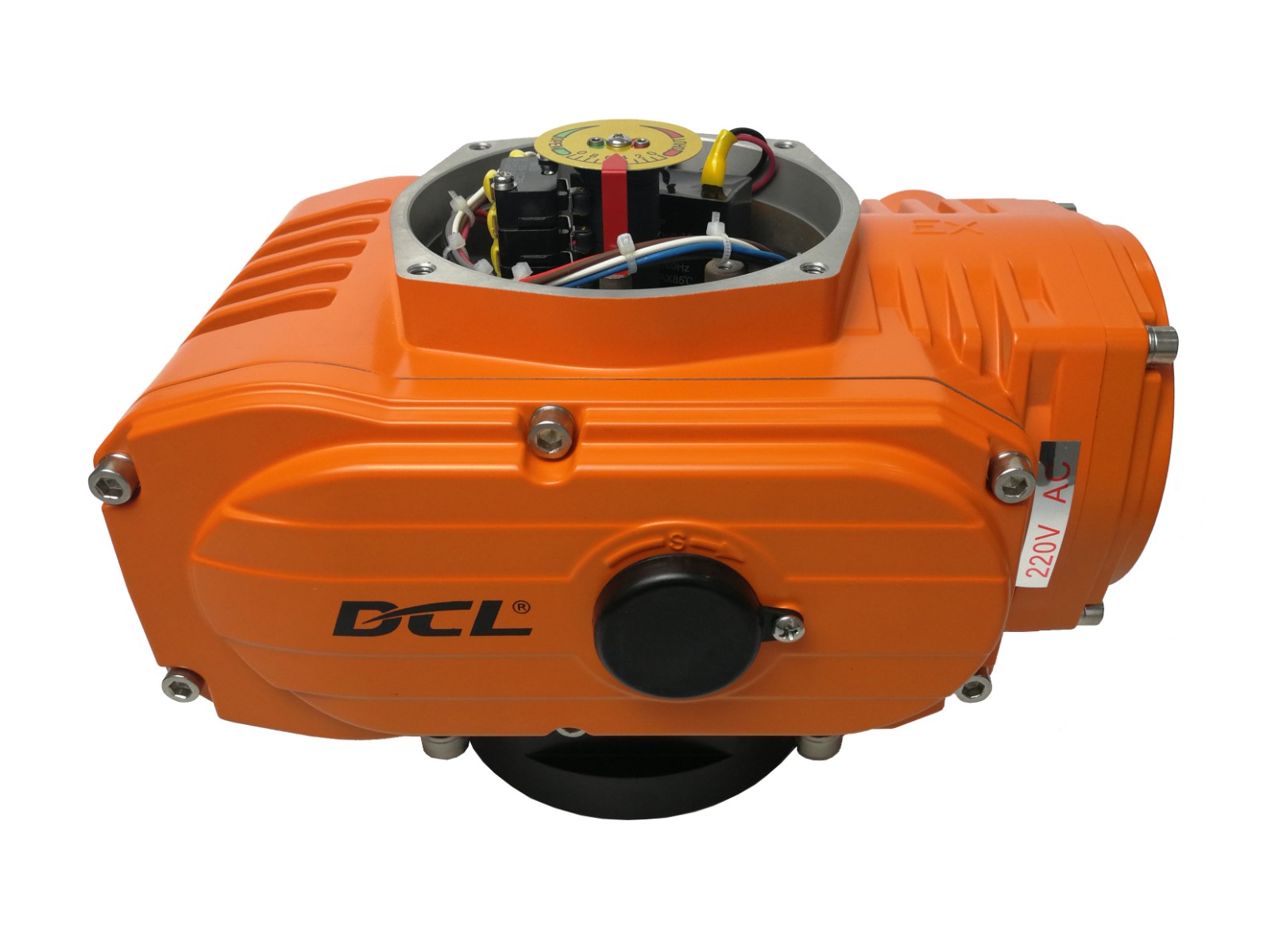

Explosion-Proof Electric Actuator for Ball Valves
This explosion-proof electric actuator is designed for direct mounting on ball valves. It is suitable for hazardous environments requiring robust and reliable valve control.
Technical Specifications
Overview
Explosion-Proof Electric Actuator
This explosion-proof electric actuator is engineered for automating angle stroke ball valves in hazardous industrial environments, including oil, gas, chemical, and petroleum sectors. It features a heavy-duty motor with high starting torque, ensuring reliable sealing for various ball valve types, including bronze, stainless, and carbon steel. Designed for safety and versatility, the unit offers 360° operation, thermal overload protection, and is compatible with standard ISO5211 multi-flange mounting.
Performance
Performance Metrics
600 Nm
Standard Torque
45 S
Standard Time
70 W
Max Motor Power
Power Supply Options
| Voltage | Motor Power | Rated Current |
|---|---|---|
| DC24V | 70W | 8.00A |
| AC110V | 90W | 1.18A |
| AC220V | 90W | 0.67A |
| AC380V | 40W | 0.29A |
Technical Details
Operating Conditions
- Ambient Temperature: -30 to +60°C
- Turning Angle: 0 to 90° (Adjustable)
- Installation Angle: 360° (Any angle)
- Insulating Resistance: 100MΩ/250VDC or 500VDC
Mechanical Features
- Self-locking all-metal gear train
- Bronze alloy worm gear
- Stainless steel visual valve position indicator
- Electric Interface: 2-M20×1.5 explosion-proof plug
Optional Functions
Over-torque ProtectorHeater
- Safety & Protection
- IP67Ex II BT4 GbATEX CertifiedSIL 3 CertifiedThermal Overload Protected
